Ellis Patents ES44-52 Emperor Single Cable Cleat

Ellis Patents Emperor Cable Cleats

Ellis Patents ES44-52

Suits 44-52mm Cables in Single



Ellis Patents ES44-52 Emperor cable cleats are available for single cable applications where the highest levels of short circuit withstand are required.

ES44-52 cable cleats are manufactured from 316L stainless steel offering the ultimate protection against the harshest environmental conditions and are suitable for 44-52mm cable diameters.

Pictured: Ellis Patents ES44-52 Emperor Single Cable Cleat

Ellis Patents ES44-52 Emperor Single Cable Cleat - Technical Specification

Part Number	Cable Range		Dimensions					Weight
	Min Dia mm	Max Dia mm	W mm	H mm	D mm	P mm	Fixing Holes
ES44-52	44	52	99	98	54	25	2 x M10 & 1 x M12	480g

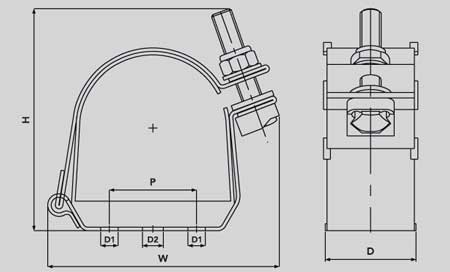

Pictured: Ellis Patents ES44-52 Emperor Single Cable Cleat - Dimensions Illustration

Ellis Patents ES44-52 Emperor Single Cable Cleat - Installation Instructions

Ellis Patents ES44-52 Emperor Single Cable Cleat - Spec Sheet
