Ellis Patents ES84-94 Emperor Single Cable Cleat

Ellis Patents Emperor Cable Cleats

Ellis Patents ES84-94

Suits 84-94mm Cables in Single



Ellis Patents ES84-94 Emperor cable cleats are available for single cable applications where the highest levels of short circuit withstand are required.

ES84-94 cable cleats are manufactured from 316L stainless steel offering the ultimate protection against the harshest environmental conditions and are suitable for 84-94mm cable diameters.

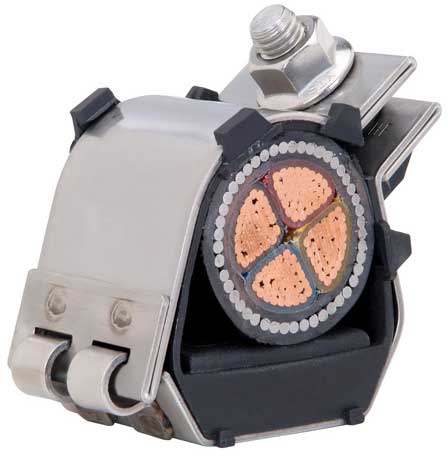

Pictured: Ellis Patents ES84-94 Emperor Single Cable Cleat

Ellis Patents ES84-94 Emperor Single Cable Cleat - Technical Specification

Part Number	Cable Range		Dimensions					Weight
	Min Dia mm	Max Dia mm	W mm	H mm	D mm	P mm	Fixing Holes
ES84-94	84	94	135	135	54	50	2 x M10 & 1 x M12	660g

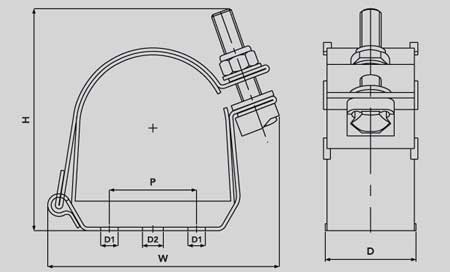

Pictured: Ellis Patents ES84-94 Emperor Single Cable Cleat - Dimensions Illustration

Ellis Patents ES84-94 Emperor Single Cable Cleat - Installation Instructions

Ellis Patents ES84-94 Emperor Single Cable Cleat - Spec Sheet
