Copper Earth Plates (Solid Copper Type) 900x900x1.5mm - Wallis EMP901

Earth Plates - Solid Copper Earth Plate

Length 900mm

Width 900mm

Height 1.5mm

Wallis EMP 901 Copper Earth Plate

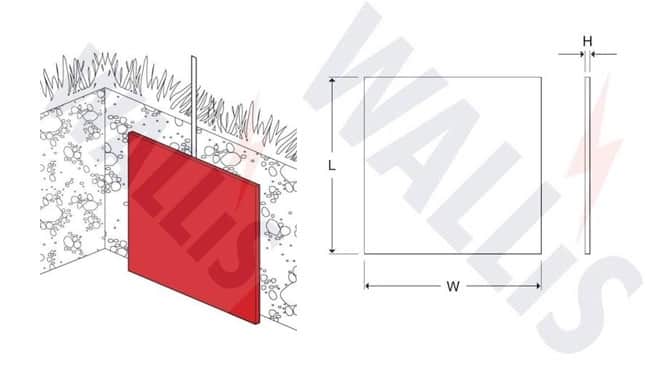

Solid copper earth plates provide a long lasting earthing solution in places where driving earth rods might be impractical - copper earth plates are often installed in conjunction with low resistance earthing compound or Bentonite earthing compound.

BS EN 13601:2013 Standard – Copper and Copper Alloys. Copper rod, bar and wire for general electrical purposes.

• Earth Plate Length x Width: 900mm x 900mm
• Height: 1.5mm
• Surface area: 1.63sqmm
• Unit Weight: 10.80kg
• Order Code: AN Wallis EMP901 (Copper)

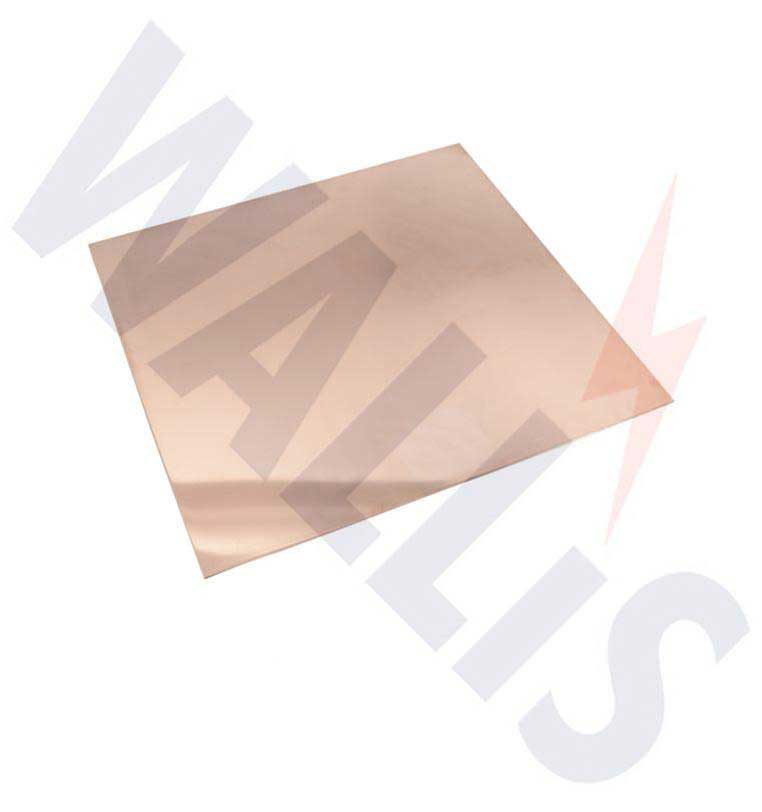

Pictured: Wallis Copper Earth Plates EMP 901

Wallis EMP 901 Copper Earth Plates - Product Details

Part Number	Dimensions	Surface Area	Unit Weight	Pack Quantity
EMP 901	900mm x 900mm x 1.5mm	1.63m²	10.80kg	1



Bentonite Conductive Earthing Compound
