Earth Bonding Points

Material: Gunmetal/PVC Insulated CableTail

AN Wallis Earthing & Lightning Protection Distributors

Earth bonding points are installed to provide a convenient earth connection point in concrete structures - when cast into concrete earth bonding points can connect the re-bar to the earthing or lightning protection system.

T&D offer a full range of Wallis earthing & lightning protection products.

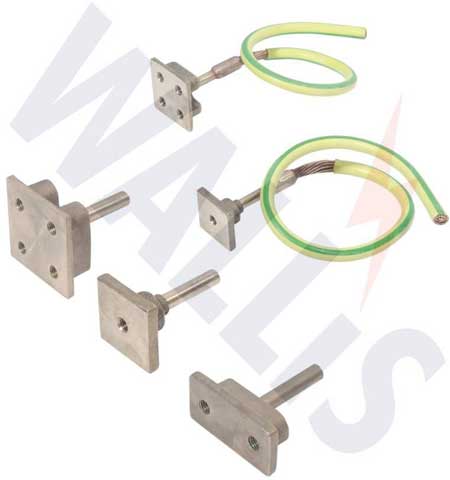

Pictured: Wallis Earth Bonding Points

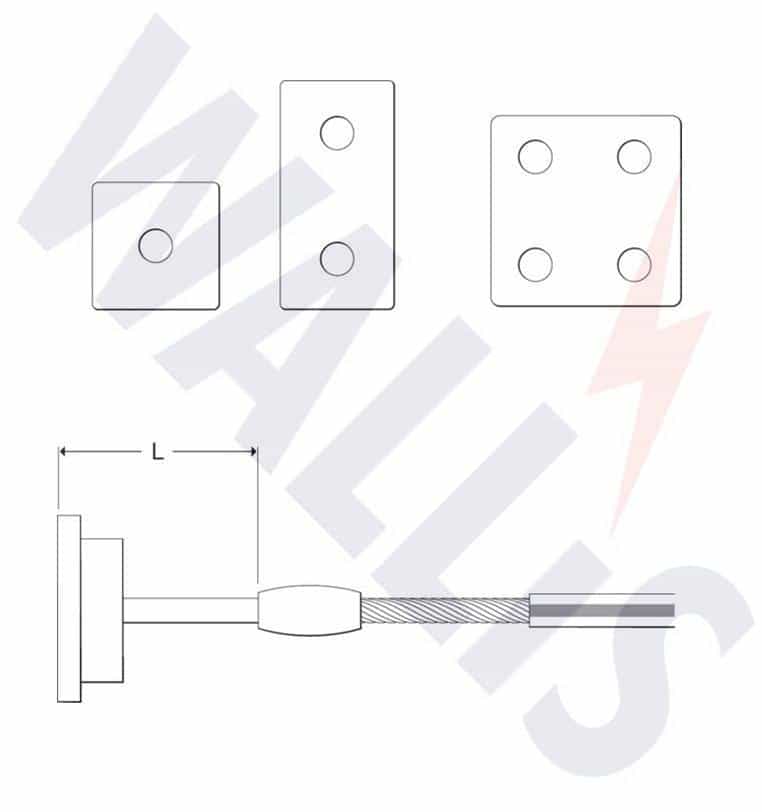

Wallis Earth Bonding Points - Product Range

Part Number	No. of Holes	Hole Size	Plate Size	Stem ø	Length	Unit Weight	Pack Quantity
EGP 01	1	M10 x 20mm	38mm x 38mm	10.7mm (70mm²)	75mm	0.16kg	10
EGP 02	2	M10 x 20mm	70mm x 35mm	10.7mm (70mm²)	75mm	0.29kg	10
EGP 04	4	M10 x 20mm	65mm x 65mm	10.7mm (70mm²)	75mm	0.54kg	10



Wallis Earth Bonding Points With Pre-Welded Tails - Product Range

Part Number	No of Holes	Type	Unit Weight	Pack Quantity
EGP 01 500	1	EGP 01 with pre-welded 500mm long tail of 70mm² PVC insulated cable	0.64kg	1
EGP 02 500	2	EGP 02 with pre-welded 500mm long tail of 70mm² PVC insulated cable	0.77kg	1
EGP 02 1000	2	EGP 02 with pre-welded 1000mm long tail of 70mm² PVC insulated cable	1.14kg	1
EGP 02 1500	2	EGP 02 with pre-welded 1500mm long tail of 70mm² PVC insulated cable	1.50kg	1
EGP 04 500	4	EGP 04 with pre-welded 500mm long tail of 70mm² PVC insulated cable	1.02kg	1
EGP 04 1000	4	EGP 04 with pre-welded 1000mm long tail of 70mm² PVC insulated cable	1.39kg	1
EGP 04 1500	4	EGP 04 with pre-welded 1500mm long tail of 70mm² PVC insulated cable	1.75kg	1
