Earth Rods - Solid Copper

Earth Rods - Solid Copper

Material: Copper to BS EN 13601

AN Wallis Earthing & Lightning Protection Distributors



Solid copper earth rods are installed where extremely high corrosion resistance and exceptionally long service life are required - solid copper earth rods to BS EN13601.

Solid copper earth rods are produced from solid copper bar and are internally threaded for jointing. When deep driving a solid copper earth rod the usual practice is to insert the rod into a bore hole and backfill with either Low-Resistance Earthing Compound or Bentonite.

• Solid Copper Earth Rods 5/8″ 16mm Diameter
• Solid Copper Earth Rods 3/4″ 19mm Diameter
• Solid Copper Earth Rods 1″ 25mm Diameter

Pictured: AN Wallis Solid Copper Earth Rods (Copper manufactured to BS EN 13601 standards)

Solid copper earth rods are produced from solid copper bar and are internally threaded for jointing.

When deep driving a solid copper earth rod the usual practice is to insert the rod into a bore hole and backfill with low resistance earth compound or Bentonite.

T&D UK can offer competitive pricing on the complete range of Furse and AN Walllis Earthing & Lightning Protection systems including copper earth bars, earth rods, earth clamps and copper earth tapes.

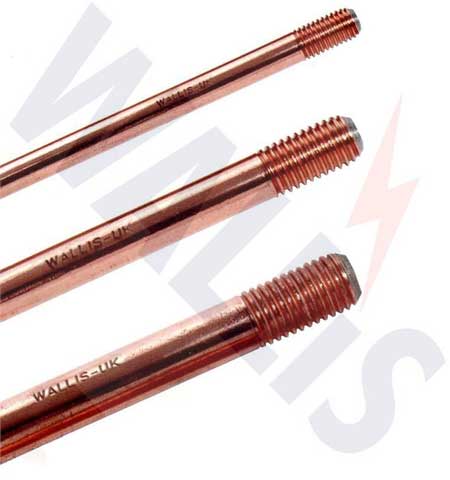

Pictured - AN Wallis Copper Earth Rods are also available with threaded version.

The table enables the selection of standard copper earth rods when specifying copper conductors for earthing and lightning protection systems.

AN Solid Copper Earth Rods - Product Range

Part Number	Shank	Length	Thread Size	Length 1	Unit Weight	Pack Quantity
ERC 112	15mm	1200mm	M10	20mm	1.88kg	5
ERC 115	16mm	1500mm	M10	20mm	2.66kg	5
ERC 118	16mm	1800mm	M10	20mm	3.20kg	5
ERC 124	16mm	2400mm	M10	20mm	4.28kg	5
ERC 130	16mm	3000mm	M10	20mm	5.36kg	5
ERC 212	20mm	1200mm	M10	20mm	3.34kg	5
ERC 215	20mm	1500mm	M10	20mm	4.18kg	5
ERC 218	20mm	1800mm	M10	20mm	5.03kg	5
ERC 224	20mm	2400mm	M10	20mm	6.71kg	5
ERC 230	20mm	3000mm	M10	20mm	8.40kg	5
ERC 312	25mm	1200mm	M12	25mm	5.23kg	1
ERC 315	25mm	1500mm	M12	25mm	6.54kg	1
ERC 318	25mm	1800mm	M12	25mm	7.86kg	1
ERC 324	25mm	2400mm	M12	25mm	10.5kg	1
ERC 330	25mm	3000mm	M12	25mm	13.1kg	1



AN Wallis Earth Rods - Solid Copper Earth Rods
