Low Voltage Distribution Boards



Spelsberg 3-70 way assembled multi-way low voltage distribution boards provide effective electricity supply to building services. Flame resistant distribution boards and electrical enclosures to IP55 or IP65 with extra connection space for quick cable terminations - boards feature built in screwless Pe/N terminals for fast site installation.

  • AK LV Distribution Boards IP65 - 400/690V, 3-70 Way Distribution Units
  • AKe LV Distribution Boards IP55 - 400/690V, 3-70 Way Distribution Units
  • Options - 3, 5, 9, 12, 14, 28, 42, 56, 70 ways distribution boards

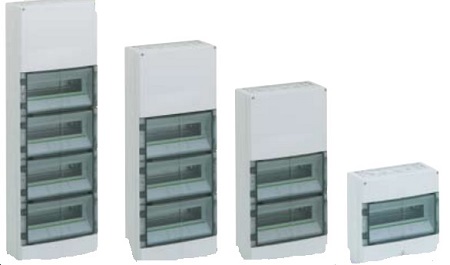

Pictured: Low Voltage Distribution Boards

Low Voltage Distribution Boards

Low Voltage Distribution Boards With Terminals - Specification
Part Number PE/N Terminal Configuration Dimensions
AKi03 - 3 way 2 x 4 pole 100 x 150 x 96mm
AKi 05 - 5 way 2 x 5 pole 125 x 200 x 122mm
AKi 09 - 9 way 2 x 7 pole 200 x 200 x 122mm
AKi 12 - 12 way 2 x 12 pole 250 x 200 x 122mm
AKi 14 - 14 way 3 x screw 14 screwless 300 x 300 x 142mm
AKi 28 - 28 way 6 x screw 21 screwless 450 x 300 x 142mm
AKi 42 - 42 way 6 x screw 21 screwless 600 x 300 x 142mm
AKi 56 - 56 way 6 x screw 21 screwless 750 x 300 x 142mm
AKi 70 - 70 way 6 x screw 21 screwless 900 x 300 x 142mm
AKi 14 Plus - 14 way 1 row 35mm rails 450 x 300 x 142mm
AKi 28 Plus - 28 way 2 row 35mm rail 600 x 300 x 142mm
AKi 42 Plus - 42 way 3 row 35mm rails 750 x 300 x 142mm
AKi 56 Plus - 56 way 4 row 35mm rails 900 x 300 x 142mm
