 Cable Lugs (Single Hole) - Cembre



Cembre single hole copper tube crimp lugs provide the most reliable low voltage crimped cable connection.

Cembre cable lugs suit stranded copper conductors 25sqmm, 35sqmm, 50sqmm, 70sqmm, 95sqmm, 120sqmm, 150sqmm, 185sqmm, 240sqmm, 300sqmm, 400sqmm, 500sqmm, 630sqmm, 800sqmm and 1000sqmm.

Cembre A range copper tube cable crimp lugs are rated up to 11kV for dry indoor cable termination applications.



Pictured : Cembre A Range Single Hole Cable Lug. Cembre A24-M12 cable lugs suit 120sqmm stranded copper conductors 600/1000 volt, 3.3kV and 11kV. Cembre A range cable lugs are available to crimp 0.25sqmm - 1000sqmm cables.





Cembre Crimp Lugs - Features


• Quality - Cembre crimp lugs are manufactured from electrolytic copper tube - the copper tube dimensions are designed to obtain the most efficient conductivity and mechanical strength to resist vibration and pull out.



• Strength - Cembre crimp lugs are annealed to guarantee optimum ductility which is an absolute necessity for crimp connectors which must withstand the severe deformation arsing when compressed by hydraulic crimp tools.In electrical installations subject to vibration, crimp terminals must perform a reliable connection - annealing avoids or breaks between the cable lug palm and barrel.



• Reliability - Cembre crimp lugs feature an inspection hole facilitating full insertion of the the copper conductor into the crimp lug - the cable lug barrel length has been designed to allow easy and accurate positioning of the dies during the crimping operation.



Cembre Copper Crimping Lugs - Specification (CE Approved  & UL Listed)

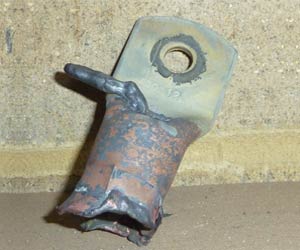

Cembre copper cable lugs are specified to crimp stranded copper conductors to BS6360 Class 2 and Class 5 flexible copper cables, suitable for 600/1000v, 3.3kV and 11kV dry indoor cable termination when installed using suitably calibrated Cembre crimping tools and die sets. Failure to use a "matched" crimping system and "mixing" various brands of cable lug, crimp tooling and dies can lead to cable lug failure as pictured below.



BS4579 Part 3 Standard - Specification for Compression Joints

Cembre cable lugs are short circuit tested and approved to BS4579-3 : 1976 Specification for performance of mechanical and compression joints in electric cable and wire connectors. BS4579 published in August 1976 was replaced by BS EN 61238 - 1 : 2003.

Cembre A-M series cable lugs are manufactured from electrolytic copper tube - the dimensions of Cembre copper tube cable crimp lugs are designed to obtain the most efficient electrical conductivity and mechanical strength to resist vibration and pull out.

Cembre cable lugs are annealed to guarantee optimum ductility which is an absolute necessity for electrical cable connectors which will have to withstand the severe deformation arising when compressed by mechanical or hydraulic crimping tools.

Annealing prevents cracking or breaking between the cable lug barrel and palm. Cembre lugs feature an inspection hole to facilitate the insertion of the cable conductor - whist the lug barrel length has been designed to allow easy and accurate positioning of the die sets during the cable crimping operation.

Overview : Cembre Copper & Aluminium Cable Crimps & Connectors - blade terminals, pin terminals, fork terminals, ring terminals, insulated terminals (LSF), narrow palm cable lugs, single hole and 2 hole cable lugs, transformer lugs, bi-metallic lugs, water-blocked lugs, high voltage lugs and cable splices 11-33kV.

Also - Cembre Cable Crimping Tools & Cembre Cable Cutting Tools
