Open Ended Cable Socks

Cable Socks11kV 33kVCable Socks

Open Ended Cable Socks

Cable Pulling & Laying Equipment

LV HV Power Telecoms

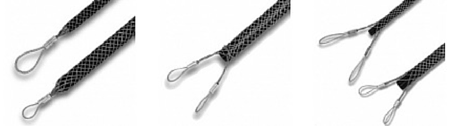

Open ended cable socks are similar to the single eye cable sock and used when offset positioning is required and the cable passes completely through the cable sock - this includes LV, MV, HV and EHV power cables.

T&D stock the complete range of single-eye, double-eye, lace up, non-conductive and open ended cable socks.

Open Ended Cable Socks - Product Range

Open Ended Cable Sock Type Cable Dia
O1 10-13mm
O2 13-19mm
O3 19-25mm
O4 25-38mm
O5 38-50mm
O6 50-63mm
O7 63-89mm
O8 89-115mm



Open Ended Cable Socks

Cable Sock - Open Ended Range Dia Lattice Length Lattice Weave
ZCS0313 10-13mm 0.38-0.50” inches 380mm 15" inches Single
ZCS0314 13-19mm  0.50-0.75” inches 610mm 24" inches Single
ZCS0315 19-25mm 0.75-1.0” inches 710mm 28" inches Single
ZCS0316 25-38mm 1.0-1.5” inches 815mm 32" inches Single
ZCS0317 38-50mm 1.50-2.0” inches 1065mm 42" inches Double
ZCS0318 50-63mm 2.0-2.5” inches 610mm 24" inches Double
ZCS1158 63-89mm 2.5-3.5” inches 1220mm 48" inches Double
ZCS1159 89-115mm 3.5-4.5” inches 1370mm 54" inches Double

Cable Socks

T&D distribute the complete range of Cable Pulling and Cable Laying Equipment for low and high voltage (LV-HV) power cable installations into underground trench or cable duct - this includes XLPE, PILC, EPR, waveform, service cables, triplex, 11kV, 33kV, EHV, fibre optic, telecoms and street lighting cables.

We supply cable rollers, cable socks, cable jacks, drum trailers, cable pulling lubricant, underground cable protection (Stokbord & Tape Tile Cable Covers) and conduit duct rod - we service the utility cable laying contractor, electrical contractor and export markets.

Cable Pulling Equipment

Adobe Cable Socks - Open Ended Socks - Catalogue

Adobe Cable Laying & Pulling Equipment for Trench & Duct - SEB Catalogue
