3M Heat Shrink Wraparound Cable Sheath Repair Kits for Low & High Voltage Cables

Cable Sheath Repair Kits

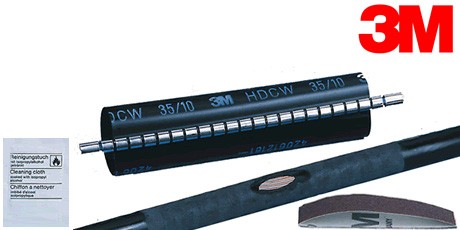

3M HDCW - Heat Shrink Cable Repair Kits

EPR, PVC, XLPE, PILC, Triplex, Fibre Optic

Heat shrink cable sheath repair kits improve the electrical and mechanical condition of all low and high voltage cables with cable sheath damage - including oil, fire, accidental and general service damage to LV-HV cables.

3M Wraparound Heat Shrink Cable Repair HDCW sleeves are designed to quickly repair damaged cable jacketing and rejacket in-line cable splices in the rail, offshore and marine, solar, street lighting, oil and gas and power industries.

Wraparound heat shrink cable sheath repair kits provide excellent mechanical protection, corrosion resistance and reinstatement to damaged cable insulations.

Where significant cable damage has exposed the cable armour it is recommended that the cable should be jointed.

3M HDCW heat shrink cable repair kits include an adhesive lining to the inner side of the heat shrink sleeve and a stainless steel rail for zip-up style installation.

Upon heating the heat shrink sleeve shrinks and the adhesive melts achieving a waterproof seal between the sleeve and the cable.

3M wraparound cable sheath repair kits are ideal for repairing mid-circuit damage to LV-HV cables (3.3kV, 6,6kV, 11kV, 33kV and triplex cable repairs).

3M Cold Shrink EPDM rubber tubes can be used for cable repair where open access to cables permit installation - suitable for underground direct burial, outdoor (UV resistant) and submersible cables. 3M Cold Shrink Silicone tubes provide LSOH low smoke zero halogen cable sheath repairs.

3M Scotch 130C Self-Amalgamating Rubber tape can be used with 3M Scotch 88+ All Weather PVC tape to repair damaged fibre optic cables.

3M HDCW Wraparound Heat Shrink Cable Repair Sleeves

3M HDCW Wraparound Heat Shrink Cable Repair Sleeves Application Guide

3M Part Number	Length Inches (mm)	Primary Insulation 600/1000v max./min Conductor AWG/MCM	Jacket Repair Use Range max./min inches (mm)	Sleeve expanded diameter inches (mm)	Sleeve recovered diameter inches (mm)
HDCW 35/10-250	9.8 (250)	#8 - 2/0	1.38-0.39 (35-10)	1.97 (50)	.32 (8)
HDCW 35/10-1200	47.2 (1200)	#8 - 2/0	1.38-0.39 (35-10)	1.97 (50)	.32 (8)
HDCW 55/15-500	19.7 (500)	3/0 - 400	2.17-0.59 (55-15)	2.95 (75)	.51 (13)
HDCW 55/15-1200	47.2 (1200)	3/0 - 400	2.17-0.59 (55-15)	2.95 (75)	.51 (13)
HDCW 80/25-750	29.5 (750)	500 - 1000	3.15-0.98 (80-25)	3.94 (100)	.91 (23)
HDCW 80/25-1200	47.2 (1200)	500 - 1000	3.15-0.98 (80-25)	3.94 (100)	.91 (23)
HDCW 110/30-1000	39.4 (1000)	1000 - 2000	4.33-1.18 (110-30)	5.20 (132)	.98 (25)
HDCW 110/30-1200	47.2 (1200)	1000 - 2000	4.33-1.18 (110-30)	5.20 (132)	.98 (25)
HDCW 140/40-1000	39.4 (1000)	N/A	5.51-1.57 (140-40)	5.71 (145)	1.26 (32)
HDCW 140/40-1200	47.2 (1200)	N/A	5.51-1.57 (140-40)	5.71 (145)	1.26 (32)



3M Cold Shrink EPDM Rubber Tubing Cable Sheath Repair

3M Cold Shrink Silicone Tubing LSF Cable Sheath Repair

Fibre Optic Cable Sheath Repairs with 3M Scotch Tapes

3M Scotch 130C Tape - Linerless Self Bonding EPR Tape

3M Scotch Super 88 Tape - All Weather PVC Tape

Heat Shrink Gas Torches to suit HDCW Cable Repair Kits
