Prysmian BICC BICON CW85 419CE-64 High Voltage Cable Gland

High Voltage Cable Glands - CW Brass

Prysmian BICC BICON Cable Glands

High Voltage Cable Glands Terminate SWA Cables

Integral Earth High Fault Current Rating

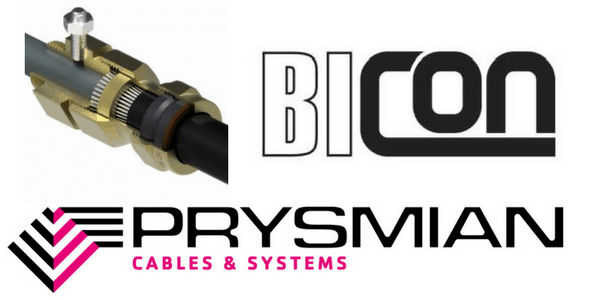

Prysmian Bicon 419CE-64 (CW85) cable glands with 85mm entry thread enable cable termination of armoured (SWA) medium and high voltage cables with integral earth connection compliant with GDCD 190 Category A (43.3kA for 1 second).

BICON CW Brass Cable Gland Kits with Integral Earth - Prysmian 419CE-64

• CW Brass Indoor and Outdoor Cable Gland with Earth Bonding Connection
• M85 Cable Gland Entry Thread
• Suits SWA Cables with 68.0-88.0mm Cable Diameters
• High Fault Current for HV High Voltage Systems - 43.3kA for 1 second
• IP66 Rated Cable Glands - Weatherproof and Waterproof

Prysmian Bicon 419CE-53 (CW20) - Technical Specification

• Manufacturer: Prysmian
• Brand: Bicon
• Cable Gland Size: CW75
• Quantity Per Kit: 1 Cable Gland
• Cable Type: SWA Steel Wire Armoured
• Specification: Medium & High Voltage Cable Glands

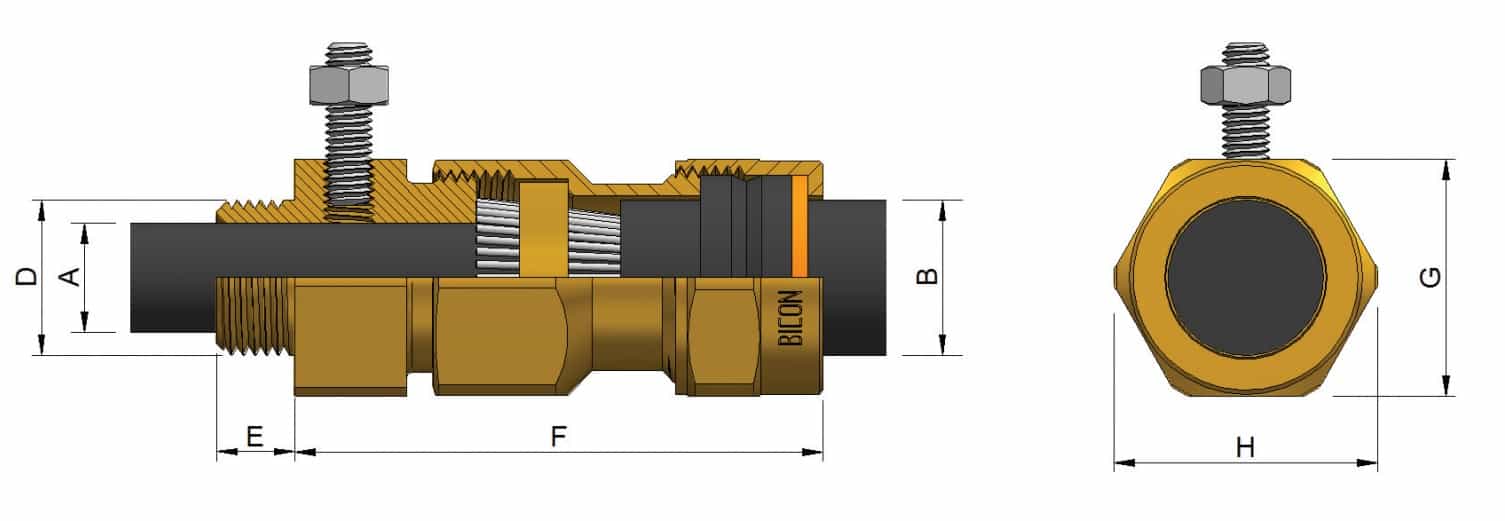

• Under Armour Cable Diameter (A): 74.0mm Maximum
• Overall Cable Diameter (B): 68.0mm Minimum
• Overall Cable Diameter (B): 88.0mm Maximum
• Armour Wire Diameter: 3.15mm
• Entry Thread (D) : M85 x 2.0
• Thread Length (E) : 20mm
• Protrusion Length (F): 125mm
• Hexagon A/F (G): 115mm
• Hexagon A/C (H): 126mm
• Order Code: Prysmian CW85 419CE-64
• Aluminium Version: Prysmian CW85 Cable Gland 454CE-64

T&D distribute Prysmian 11kV Cable Terminations utilising heat shrink technology to terminate high voltage power cables into switchgear, transformers and motors.
