PrysmianBS5467 LV Power Cable

XLPE AWA Power Cables



Draka BS5467 is the low voltage armoured power cable for industrial wiring and mains distribution.

Designed for installation in duct, clipped directly to a surface, on tray, in basket or in free air they may also be laid direct in ground in free draining soil or embedded in concrete. The design of Draka BS5467 is particularly robust and is well suited to areas at risk of mechanical damage.

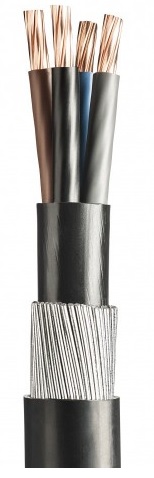

BS5467 LV Power Cable

  • BS5467 Approved LV Power Cable (600/1000 volts)
  • Conductor - Single core plain annealed copper stranded (Class 2)
  • Insulation - XLPE
  • Bedding - Extruded bedding compound
  • Outer sheath - PVC sheath
  • Armour - Aluminium wire armour AWA



BS5467 LV Power Cables
Nominal cross sectional area mm² Approx. overall dia. mm Approx. Dia. Under Armour mm Nominal dia. of armour wires mm Approx. cable weight kg/km Max. conductor resistance @ 20°C Ohms/km Conductor short circuit rating (1 sec) kA Single phase AC in air horizontal spaced Amps
150 25.8 19.5 1.6 1950 0.1240 21.4 510
185 28.0 21.6 1.6 2350 0.0991 26.4 574
240 30.5 23.9 1.6 3000 0.0754 34.3 661
300 33.5 26.5 1.6 3675 0.0601 42.9 739
400 37.8 30.4 2.0 4700 0.0470 57.2 820
500 41.1 33.9 2.0 5925 0.0366 71.5 910
630 45.3 38.2 2.0 7450 0.283 90.1 1001
800 54.8 43.7 2.5 9400 0.221 114 1055
1000 58.4 48.5 2.5 11400 0.0176 143 1115



Nominal cross sectional area mm² Current rating Volt drop single phase AC touching mV/A/m Volt drop Three phase AC trefoil mV/A/m
Three phase in gro5nd trefoil formation Amps Three phase in Trefoil Duct Amps Three phase in air trefoil formation
150 431 396 483 0.38 0.33
185 485 437 555 0.33 0.28
240 558 489 654 0.28 0.24
300 623 534 745 0.25 0.21
400 691 567 851 0.22 0.195
500 765 615 963 0.21 0.18
630 841 664 1084 0.195 0.17
800 888 692 1178 0.19 0.165
1000 942 735 1278 0.18 0.155
