Lucy Heavy Duty Cutouts HDC200 - 200A TPNE Insulated Cut-out

Lucy Heavy Duty Cut-outs - 200A, 400A, 600A

Lucy  (HDCO) HDC200 - 200A TPNE Insulated Cut-out



The Lucy Insulated Heavy Duty Cut-out - HDC200 (415V a.c.), has replaced the Lucy GF200 Cut-out. Specified and approved by most UK DNO's the Lucy HDC200 cut-out incorporates a redesigned trough to allow a choice of three cable entry positions, Conforms to BS 7657:1993, accepts fuses to BS 1361:1991 and also has an integral sealing wire facility.

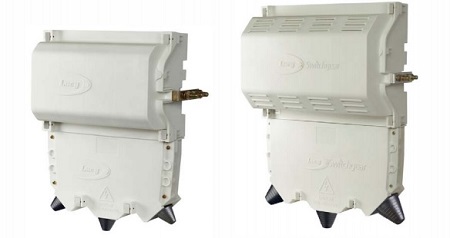

Pictured: Lucy Heavy Duty Cutouts HDC200 - 200A TPNE Insulated Cut-out



Lucy Switchgear Insulated Heavy Duty Cut-outs - HDC200 accept BS88 J type fuse links with 83mm centres and can accept a maximum 120sqmm cable. Incoming conductor termination is achieved using range taking mechanical shear off connectors or compression lugs, while outgoing cable terminations utilise range taking mechanical leader clamps or compression lugs

Manufactured from glass reinforced polyamide 6, the Lucy HDC200 Heavy Duty Cut-out has tinned copper busbars, polybutylene terepthalate (PBT), fuse link handles, clear polycarbonate insulation shields and flexible synthetic nitrile rubber grommets.

Lucy Heavy Duty Cut Outs : HDC 200/400/600

• Accepts BS 88 J type fuse links
• Cut out ratings 200A/300A/400A/600A
• Fuse carriers with 83mm or 92mm centres
• Moulded in off-white glass filled polyamide
• Cut out accepts up to 300sqmm aluminium or copper conductors

Heavy Duty Cut Outs HDCO 200A, 400A, 600A



T&D offer Lucy House Service Cut Outs Both Single & Triple Phase 60A 80A 100A.

Lucy Insulated Heavy Duty Cut-Out - HDC200

Lucy Heavy Duty Cutouts (HDCO) GF200 - 200A TPNE Insulated Cutout
