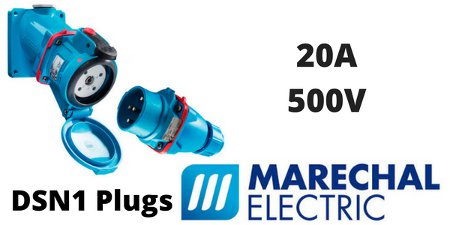

Marechal DSN1 Plugs, Sockets (Decontactors) 20Amps

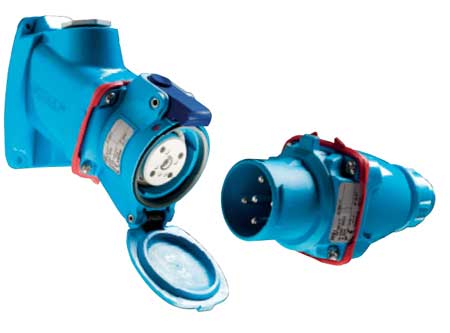

Marechal DSN Plugs & Sockets





Marechal DSN1 20Amp Plug & Socket (Decontactors) for Low Voltage Industrial Power Supply and Motor Connections

Marechal DSN range of industrial power supply and motor connection plugs and sockets provide low voltage distribution, 20amps-63amps.

Marechal DSN range industrial plugs are the quality standard for manufacturing industry providing benefits compliant with International Standard IEC60309-1 and European Standard EN60309-1 (Plugs & Sockets Outlets for Industrial Purposes).

Marechal DSN1 Decontactor Plugs & Sockets Specifications:

• Rated current (with wiring according to standard): 20A
• Maximum Voltage: 5000V
• IP Protection Lid Closed: IP66/IP67
• IP Protection Connected Plug: IP66/IP67
• Load Breaking Capability: AC-22 / AC-23
• GRP Casings
• Shock Resistance: IK08
• Ambient Temperature: -40°C to +60°C
• Equipped with silver-nickel butt contacts for lifetime reliability



Marechal DSN1 Plugs, Sockets (Decontactors) 20Amps

Rated Current (with wiring according to standard)	20A
Maximum Voltage	500V
IP Protection Lid Closed	IP66/IP67/IP69K
IP Protection Connected Plug	IP66/IP67/IP69K
Shock Resistance	IK08
Ambient Temperature	-40ºC to +60ºC
Flexible Wiring (Min-Max)	1mm² - 2.5mm²
Stranded Wiring (Min-Max)	1.5mm² - 4mm²
Other Wiring	On Request
Keying Positions	24

Marechal DSN1 Plugs - Load Break Capability

• Comply with IEC EN 60309-1 and IEC EN 60309-4 standards - 20 A / 500 V
• Load-break capability according to IEC EN 60947-3 / AC-22A - 20 A / 500 V
• Load-break capability according to IEC EN 60947-3 / AC-23A - 20 A / 400 V
• Short-circuit current Icc - 10 kA

Marechal DSN1 is available in a wide range of voltages and polarity options for both female socket outlets and male inlet plugs:

• 20-24V, 2P
• 190-230V, 3P+E
• 220-250V, 1P+N+E
• 380V-440V, 3P+E
• 220-250V & 380V-440V (Dual Voltage), 3P+N+E
• 480-500V, 3P+E
• 480-500V, 3P+N+E

 A full range of boxes, sleeves, handles, adaptors and accessories can also be supplied. Marechal's DSN range of plugs and sockets are suitable for rated currents from 20A up to 63A and maximum voltages from 500V up to 690V.

Marechal DSN Plugs 20A-63A Decontactors – Technical Features

Marechal Part Number	DSN1	DSN3	DSN6
Rated Current (ln)	20Amp Plug	32Amp Plug	63A Plug
Umax	500V	690V	1,000V
AC-22 Switching Capacity	20A / 500V	32A / 690V	50A  / 690V
AC-23 Switching Capacity	20A / 400V	32A / 400V	63A / 400V
Auxiliary Contacts (Optional)	–	2	4
Keying Positions (To distinguish between different power supplies & applications)	24	24	24
Ambient Temperature	-40ºC to +60ºC	-40ºC to +60ºC	-40ºC to +60ºC
Short Circuit Current lcc	10kA	10kA	10kA



Marechal DSN1 - Socket Outlets & Inlets

Voltage 50Hz	Polarity	Marechal Socket Outlet (Female) DSN1 20A	Marechal Inlet (Male) DSN1 20A
20-24V	2P	611408A	611808A
190-230V	3P+E	6114033	6118033
220-250V	1P+N+E	6114015	6118015
380-440V	3P+E	6114013	6118013
220-250V / 380-440V	3P+N+E	6114017	6118017
480-500V	3P+E	6114093	6118093
480-500V	3P+N+E	6114097	6118097



YouTube Video Playlist: Marechal Industrial Plugs & Sockets

Marechal DSN1 Plugs Sockets Decontactors 20Amps IP66/IP67

T&D also distribute hazardous area isolators, control panels and distribution boards, electrical enclosures and motor starters certified according to ATEX for use in Zone 1 & Zone 2 (gas/vapour) explosive atmospheres.
