Cable Joint Tools - Cable Core Twisters



Cable core twisters are used by jointers to manipulate bare or insulated cable cores and to align the cores prior to jointing.

Ellis Patents cable core twisters are produced in Nylon (International Orange).

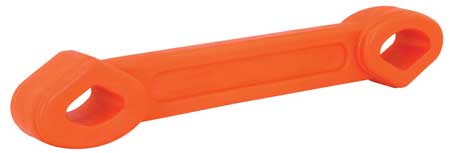

Pictured: Ellis Patents Cable Core Twisters

Ellis Patents Cable Core Twisters - Product Range

Part Number	Cores	Core Range Size	Pack Quantity	Weight
110-95C	3	70mm² Bare x 95mm² Bare	10	54g
110-X01C	3	95mm² Bare x 95mm² Ins	10	51g
110-120C	3	70mm² Bare x 120mm² Bare	10	51g
110-120IC	3	70mm² Ins x 120mm² Ins	10	49g
110-X06C	3	120mm² Bare x 120mm² Ins	10	48g
110-X07C	3	185mm² Bare x 185mm² Ins	10	148g
110-240C	3	185mm² Bare x 240mm² Bare	10	146g
110-300C	3	185mm² Bare x 300mm² Bare	10	147g
110-300IC	3	185mm² Ins x 300mm² Ins	10	139g
110-X08C	3	300mm² Bare x 300mm² Ins	10	138g
110-X09C	3	70mm² Bare x 70mm² Ins	10	53g
110-X10C	3	95mm² Bare x 185mm² Bare	10	154g
110-X11C	3	95mm² Ins x 185mm² Ins	10	149g
110-41C	4	95mm² Bare x 95mm² Ins	10	51g
110-42C	4	185mm² Ins x 240mm² Ins	10	142g
110-43C	4	185mm² Bare x 240mm² Ins	10	150g
110-44C	4	185mm² Ins x 300mm² Ins	10	141g
110-48C	4	120mm² Ins x 185mm² Ins	10	150g
110-X02C	4	185mm² Bare x 300mm² Bare	10	146g
110-X14C	4	95mm² Bare x 185mm² Bare	10	155g
110-X15C	4	95mm² Ins x 185mm² Ins	10	149g
110-16C	4	95mm² Ins Stranded x 95mm² Ins Solid	10	51g
110-17C	4	300mm² Ins Stranded x 300mm² Ins Solid	10	140g
110-X03C	3 & 4	3C 95mm² Ins x 4C 95mm² Ins	10	50g
110-X04C	3 & 4	3C 185mm² Ins x 4C 185mm² Ins	10	145g
110-X05C	3 & 4	3C 300mm² Ins x 4C 240mm² Ins	10	135g
110-X12C	3 & 4	3C 300mm² Bare x 4C 300mm² Bare	10	141g
110-X13C	3 & 4	3C 300mm² Ins x 4C 300mm² Ins	10	134g
