Prysmian BICON 424TW52 BARR-W Exd IIC (Explosion Proof) Cable Gland M20S (8.0-15.8mm)

Prysmian Bicon Cable GandsPrysmian BICON 424TW Explosion Proof Barrier Cable Glands

Zone 1 & Zone 2 Hazardous Areas (ATEX Certified)

Ex d Cable Glands

Prysmian BICON 424TW52 BARR-W Exd IIC





BICON Cable Glands - Prysmian Explosion Proof Cable Glands

Prysmian 424TW52 Barrier Cable Glands

The Prysmian 424TW52 is a barrier type cable gland for steel wire armoured cables which aids the control of migrating gasses. The BICON 424TW52 BARR-W Exd IIC cable gland provides the highest level of hazardous protection.

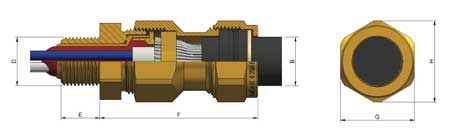

Prysmian 424TW52 Cable Gland

Prysmian 424TW Series Barrier Cable Gland Specifications
Gland Reference Cable Dimensions (mm) Gland Dimensions
Design Ref Size Metric Max dia.

Max No.

 Inner Sheath Ø

B

Armour Wire

Ø

D

E

F

 Hexagon
Min Max

G

H
Prysmian 424TW-52 20S 11 30 - 11.5 8 0.9/1.4 M20 x 1.5 15 67 30.5 34

Adobe Prysmian BICON 424TW52 BARR-W EExd IIC (Explosion Proof) Cable Gland 20S (8.0-15.8mm)
