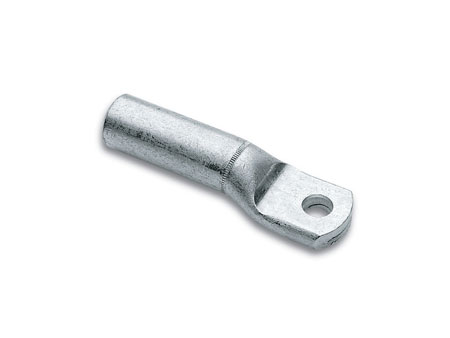

Cembre AA95 Aluminium Cable Lugs 95sqmm

Cable Aluminium Cable Lugs

Aluminium Cable Termination Lugs up to 11kV-33kV

Suit Stranded Compacted Circular Aluminium Conductors

95sqmm Conductor Size

Cembre AA95-M12  / AA95-M14



Cembre AA95 Aluminium Cable Lugs 95sqmm - designed to be crimped onto the conductor to enable low voltage cable termination via the lug. Stud hole size M12 or M14

Cembre AA95-M12 Cable Lug Installation

Cembre Die Set MK20-C
Cembre Crimp Tool HT131-C
Cembre Pre-Rounding Die Set UP130-10.5C

Cembre AA95-M14 Cable Lug Installation

Cembre Die Set MK20-C
Cembre Crimp Tool HT131-C
Cembre Pre-Rounding Die Set UP130-10.5C

Cembre AA95-M12 Cable Lug Dimensions

Internal Diameter 12.5mm
Palm Width 27mm
Overall Length 91mm

Cembre AA95-M14 Cable Lug Dimensions

Internal Diameter 12.5mm
Palm Width 27mm
Overall Length 95mm

Cembre aluminium cable lugs (AA range) are rated up to 33kV.



























Also - Cembre Cable Crimping Tools & Cembre Cable Cutting Tools
