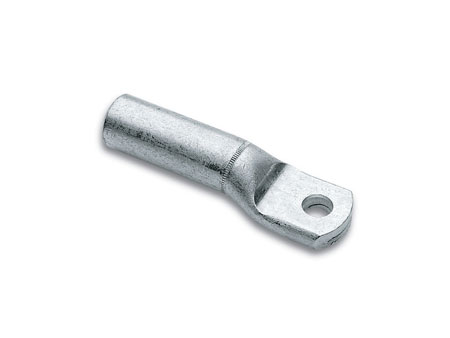

Cembre AA70 Aluminium Cable Lugs 70sqmm

Cable Aluminium Cable Lugs

Aluminium Cable Termination Lugs up to 11kV-33kV

Suit Stranded Compacted Circular Aluminium Conductors

70sqmm Conductor Size

Cembre AA70-M12  / AA70-M14



Cembre AA70 Aluminium Cable Lugs 70sqmm - designed to be crimped onto the conductor to enable low voltage cable termination via the lug. Stud hole size M12 or M14

Cembre AA70-M12 Cable Lug Installation

Cembre Die Set MK20-C
Cembre Crimp Tool HT131-C
Cembre Pre-Rounding Die Set UP130-9.0C

Cembre AA70-M14 Cable Lug Installation

Cembre Die Set MK20-C
Cembre Crimp Tool HT131-C
Cembre Pre-Rounding Die Set UP130-9.0C

Cembre AA70-M12 Cable Lug Dimensions

Internal Diameter 11mm
Palm Width 27mm
Overall Length 91mm

Cembre AA70-M14 Cable Lug Dimensions

Internal Diameter 11mm
Palm Width 27mm
Overall Length 95mm

Cembre aluminium cable lugs (AA range) are rated up to 33kV.
