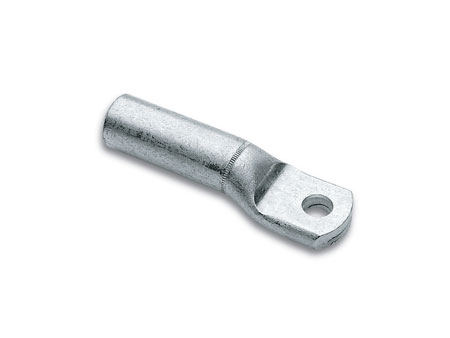

Cembre AA50 Aluminium Cable Lugs 50sqmm

Cable Aluminium Cable Lugs

Aluminium Cable Termination Lugs up to 11kV-33kV

Suit Stranded Compacted Circular Aluminium Conductors

50sqmm Conductor Size

Cembre AA50-M12  / AA35-M14



Cembre AA50 Aluminium Cable Lugs 50sqmm - designed to be crimped onto the conductor to enable low voltage cable termination via the lug. Stud hole size M12 or M14

Cembre AA50-M12 Cable Lug Installation

Cembre Die Set MK20-C
Cembre Crimp Tool HT131-C
Cembre Pre-Rounding Die Set UP130-7.5C

Cembre AA50-M14 Cable Lug Installation

Cembre Die Set MK20-C
Cembre Crimp Tool HT131-C
Cembre Pre-Rounding Die Set UP130-7.5C

Cembre AA50-M12 Cable Lug Dimensions

Internal Diameter 9mm
Palm Width 26mm
Overall Length 91mm

Cembre AA50-M14 Cable Lug Dimensions

Internal Diameter 9mm
Palm Width 26mm
Overall Length 95mm

Cembre aluminium cable lugs (AA range) are rated up to 33kV.





Also - Cembre Cable Crimping Tools & Cembre Cable Cutting Tools
