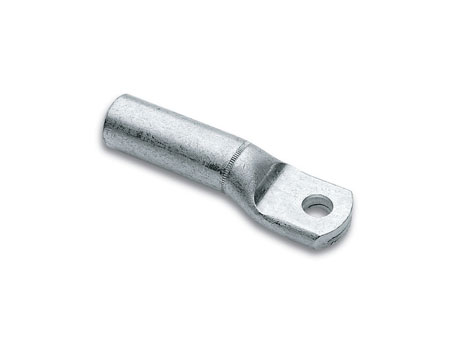

Cembre AA35 Aluminium Cable Lugs 35sqmm

Cable Aluminium Cable Lugs

Aluminium Cable Termination Lugs up to 11kV-33kV

Suit Stranded Compacted Circular Aluminium Conductors

35sqmm Conductor Size

Cembre AA35-M8  / AA35-M10



Cembre AA35 Aluminium Cable Lugs 35sqmm - designed to be crimped onto the conductor to enable low voltage cable termination via the lug. Stud hole size M8 or M10

Cembre AA35-M8 Cable Lug Installation

Cembre Die Set MK20-C
Cembre Crimp Tool HT131-C
Cembre Pre-Rounding Die Set UP130-7.5C

Cembre AA35-M10 Cable Lug Installation

Cembre Die Set MK20-C
Cembre Crimp Tool HT131-C
Cembre Pre-Rounding Die Set UP130-7.5C

Cembre AA35-M8 Cable Lug Dimensions

Internal Diameter 8mm
Palm Width 23mm
Overall Length 77.5mm

Cembre AA35-M10 Cable Lug Dimensions

Internal Diameter 8mm
Palm Width 23mm
Overall Length 77.5mm

Cembre aluminium cable lugs (AA range) are rated up to 33kV.



Also - Cembre Cable Crimping Tools & Cembre Cable Cutting Tools
