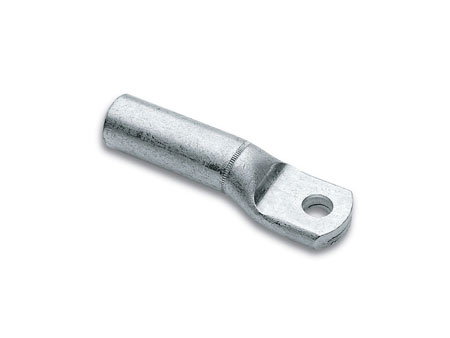

Cembre AA300 Aluminium Cable Lugs 300sqmm

Cable Aluminium Cable Lugs

Aluminium Cable Termination Lugs up to 11kV-33kV

Suit Stranded Compacted Circular Aluminium Conductors

300sqmm Conductor Size

Cembre AA300-M12 / AA300-M14



Cembre AA300 Aluminium Cable Lugs 300sqmm - designed to be crimped onto the conductor to enable low voltage cable termination via the lug. Stud hole size M12 or M14

Cembre AA300-M12 Cable Lug Installation

Cembre Die Set MK34L-C
Cembre Crimp Tool HT131-C
Cembre Pre-Rounding Die Set UP130-20.2C

Cembre AA300-M14 Cable Lug Installation

Cembre Die Set MK34L-C
Cembre Crimp Tool HT131-C
Cembre Pre-Rounding Die Set UP130-20.2C

Cembre AA300-M12 Cable Lug Dimensions

Internal Diameter 22.5mm
Palm Width 47mm
Overall Length 130mm

Cembre AA300-M14 Cable Lug Dimensions

Internal Diameter 22.5mm
Palm Width 47mm
Overall Length 132mm

Cembre aluminium cable lugs (AA range) are rated up to 33kV.



Also - Cembre Cable Crimping Tools & Cembre Cable Cutting Tools
