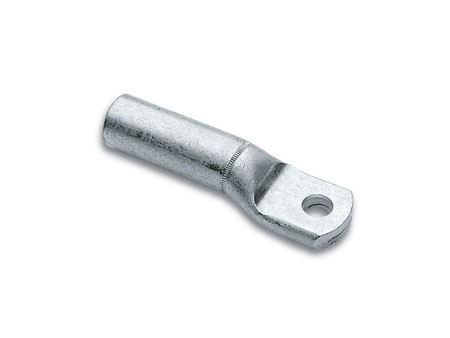

Cembre AA25 Aluminium Cable Lugs 25sqmm

Cable Aluminium Cable Lugs

Aluminium Cable Termination Lugs up to 11kV-33kV

Suit Stranded Compacted Circular Aluminium Conductors

25sqmm Conductor Size

Cembre AA25-M8



Cembre AA25 Aluminium Cable Lugs 25sqmm - designed to be crimped onto the conductor to enable low voltage cable termination via the lug. Stud hole size M8.



Cembre AA25-M8 Cable Lug Installation

• Cembre Die Set MK16-C
• Cembre Crimp Tool HT131-C
• Cembre Pre-Rounding Die Set UP130-6.3C



Cembre AA25-M8 Cable Lug Dimensions

Internal Diameter 6.5mm
Palm Width 21mm
Overall Length 77mm

Cembre aluminium cable lugs (AA range) are rated up to 33kV.



Also - Cembre Cable Crimping Tools & Cembre Cable Cutting Tools


Cembre AA25 Aluminium Cable Lugs 25sqmm

Cembre AA25 Aluminium Cable Lugs 25sqmm (AA25-M8)
