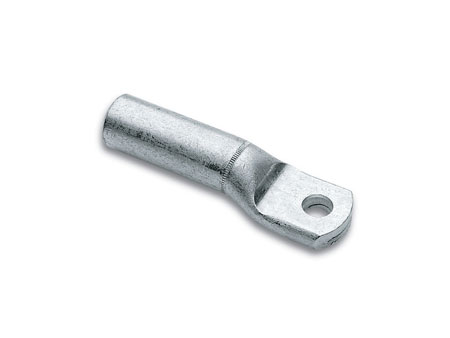

Cembre AA150 Aluminium Cable Lugs 150sqmm

Cable Aluminium Cable Lugs

Aluminium Cable Termination Lugs up to 11kV-33kV

Suit Stranded Compacted Circular Aluminium Conductors

150sqmm Conductor Size

Cembre AA150-M12  / AA150-M14



Cembre AA150 Aluminium Cable Lugs 150sqmm - designed to be crimped onto the conductor to enable low voltage cable termination via the lug. Stud hole size M12 or M14

Cembre AA150-M12 Cable Lug Installation

Cembre Die Set MK25-C
Cembre Crimp Tool HT131-C
Cembre Pre-Rounding Die Set UP130-14.0C

Cembre AA150-M14 Cable Lug Installation

Cembre Die Set MK25-C
Cembre Crimp Tool HT131-C
Cembre Pre-Rounding Die Set UP130-14.0C

Cembre AA150-M12 Cable Lug Dimensions

nternal Diameter 15.5mm
Palm Width 34mm
Overall Length 115mm

Cembre AA150-M14 Cable Lug Dimensions

Internal Diameter 15.5mm
Palm Width 34mm
Overall Length 119mm

Cembre aluminium cable lugs (AA range) are rated up to 33kV.

Also - Cembre Cable Crimping Tools & Cembre Cable Cutting Tools
