Ellis Patents SHB2 Cable Hooks (Suspension) Up to 75mm Dia

Ellis Patents Cable Hooks - Type B Cable Suspension Hooks for LV&HV Power Cables

Ellis Patents

SHB2

Ellis Patents SHB2 Cable Hooks are manufactured from mild steel and are hot dipped galvanised for extended service life in harsh operating conditions.

Ellis cable hooks are specified to hang electric cables on walls or support structures.

Ellis Patents SHB2 Cable Hooks - Design Specification

Maximum Cable Dia - Up to 75mm
T - 140mm
U - 60mm
V - 13mm
W - 50mm
Cable Hook Thickness - 6mm
Weight - 680g
SWL (Load Capacity) - 250kgs

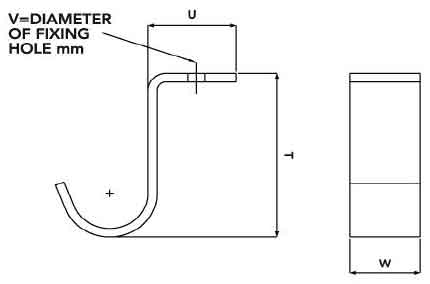

Ellis Patents SHB2 Cable Hook Dimensions

Cable Hook Selection Chart

Cable Hook Selection

Video - Ellis Patents Cable Hooks - Type B

Adobe Ellis Patents SHB2 Cable Hooks (Suspension) Up to 75mm Dia
