Cable Joint Kits - CTL Features

Resin Cable Joint Kits

CTL Features

Underground Resin Cable Jointing Kits -  LV Cable Joints



• Injection Moulded Shells

Cable joint kits include injection moulded cable jointing shells - rigid and very strong, the cable joint snap-lock shell design forms an excellent cable seal and prevents cable jointing resin leakage when the cable jointer is jointing LV cables. Cable joint kits are complete and ready to use.



• Mechanical Connectors

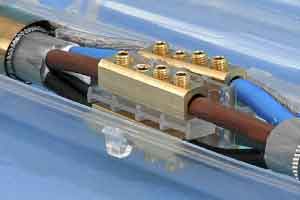

Cable joint kits include mechanical connectors - MC1/0 to MC1/3 mechanical connectors have been especially designed to accept the same range of cable sizes as the CM0 to CM3 LV cable joint kits they are supplied with. Machined mechanical connectors from solid brass are suitable for either copper or aluminium conductors. Two Allen screws for each cable core ensure a sound electrical performance and an Allen key is also provided with each resin cable joint kit to ensure that everything needed to joint a cable is included in the one box (CM and CB “+C” cable joint kit ranges). The connector range is complemented with larger aluminium alloy connectors.



• Earth Braid

Cable joint kits include wire armour or wire braid earth continuity kits- offers significant advantages over “single wire type” earth continuity systems, which can fail if poorly positioned within wire armour cores that have “spread”. The flat, soft braid ensures good electrical contact across the resin cable joint and is insulated for extra protection.



• Constant Force Springs

Cable joints move and expand due to earth shift and heat from electrical current. Constant force springs react to this movement and maintain a sound electrical connection across the resin cable joint between the steel wire armouring and the earth continuity braid.



• Core Separators

Provide safe separation of cable cores and mechanical or crimp connectors.



• Two-Part Resin

Cable joint kits include resin - CTL’s long-proven cable jointing resin formula is of such quality that it is equally suitable for both LV and HV cable jointing applications and provides excellent adhesion to PVC, XLPE, polythene and paper cables. Cable jointing resin is supplied in two-part easy-mix packaging, ensuring both convenience and safety.



• Cable Joint Packaging

Cable joint kits are supplied in especially robust and rigid boxes to withstand stacking both in warehouses and in pallets. Cable joint kit boxes are also popular with cable jointers since they can be used as “mini workbenches”.



• Jointing Instructions

Detailed, clear and concise cable jointing instruction sheets, mostly printed in full colour, ensure there is no ambiguity about safe cable jointing procedures.



• Breadth of Range

There are few, if any, combinations of power cables that CTL resin cable joints cannot joint.

T&D offer over 400 variations of resin cable joints including special versions for mines & quarries, oil and petrochem, telecom & control and cathodic protection. Cable joint kits utilise both resin and heatshrink technologies and are supplied for both LV and MV applications.

T&D carry extensive stocks of cable joint kits - including resin cable joints, cold shrink cable joints and heat shrink cable joints for jointing low voltage (LV) power, control and instrumentation cables in safe or hazardous areas.
