Cable Jacks - 8 Tonne - SJ8

Screw Type Cable Jacks

SEB SJ8 Screw Jack

Cable Drum Lifting Jacks

LV HV Cable Drums

Cable Jacks - a complete range of screw jacks and cable drum jacks easy to handle and simple to operate. Large baseplate designed to give cable jack stability even on soft ground.

Cable jacks are supplied complete with spindle bars and locking collars.

SJ8 Cable Jacks

• 8 Tonne capacity/pair
• Minimum cable drum diameter 1660mm
• Maximum cable drum diameter 2200mm
• Base plate size 600mm x 300mm
• Weight (pair of cable jacks) 76kg

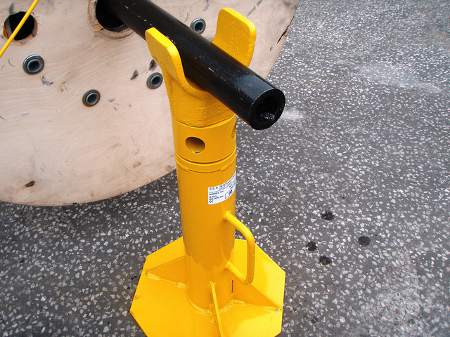

Pictured: Cable Jacks - 8 Tonne - SJ8

Cable Drum Jacks & Setting Cable Drums Prior to Cable Pulling & Laying

LV HV Cable Pulling Using Cable Jacks - Precautions To Take

• Carry out site specific risk assessment.
• Always wear appropriate PPE.
• Always push cable drums in the direction of travel.
• Never pull cable drums with back to the direction of travel.
• Push squarely on the cable drum flanges and be aware for any projecting nails in wooden cable drums.
• Always use approved equipment for handling cable drums.
• Never allow cable drums to move in an uncontrolled manner.
• Never position or store a cable drum underneath an overhead line.

Cable Jacks, 8 Tonne - Screw Jack Type - SJ8
