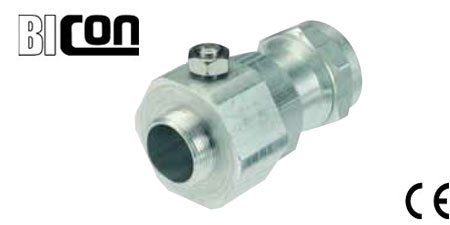

Prysmian BICC BICON high voltage aluminium CW cable glands are suitable for terminating 11kV-33kV single core aluminium wire armoured (AWA) power cables with cast integral earth lugs where high fault currents are generated on medium and high voltage electrical circuits.

Prysmian 454CE CW cable glands feature an integral earth connection compliant with GDCD 190 Category A (43.3kA for 1 second).

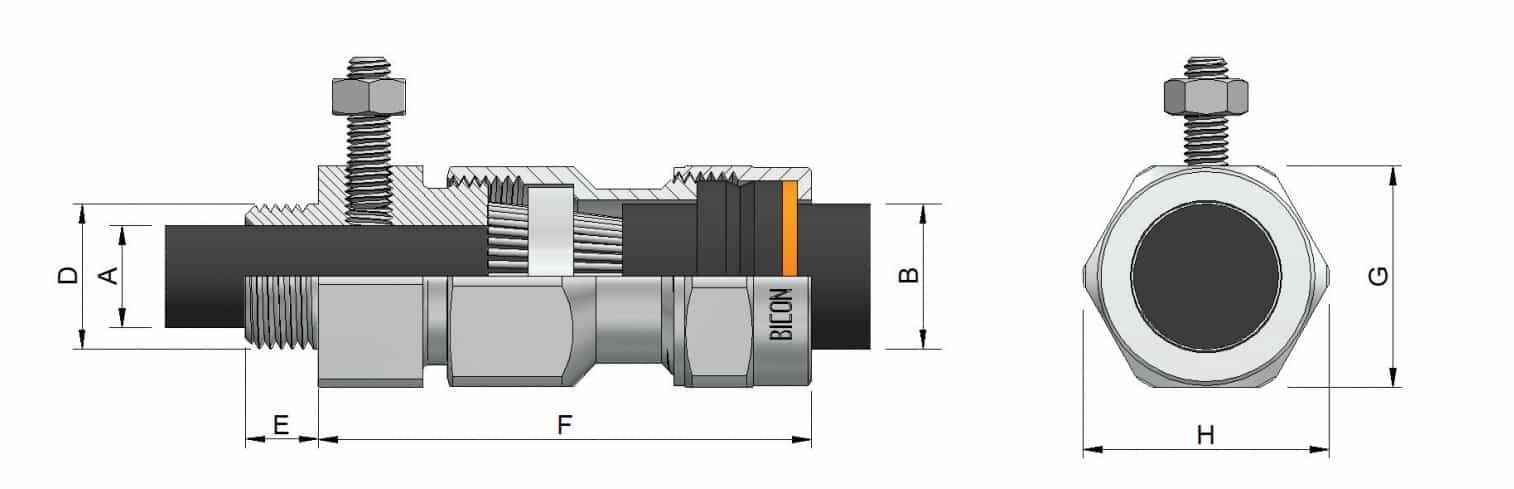

Prysmian Bicon Reference (Standard)	Size	Under Armour Max Ø (A)	Cable Dimensions (mm)		CW Cable Gland Dimensions (mm)
			Cable Diameter Ø (B) mm)		Entry Thread (D)	Thread Length (E)	Protrusion Length (F)	Hexagon
			Min	Max				A/F (G)	A/C (H)
454CE-52	20S	11.6	8.0	15.8	M20×1.5	10	56	30.5	34
454CE-53	20	13.9	11.7	20.8	M20×1.5	10	56	37.6	42.2
454CE-55	25	19.9	17.0	27.2	M25×1.5	10	63	42.4	48.0
454CE-56	32	26.2	23.5	33.5	M32×1.5	10	73	56.4	61.5
454CE-57	40	32.1	29.0	39.9	M40×1.5	15	77	56.4	61.5
454CE-59	50	44.0	39.5	52.6	M50×1.5	15	84	70.1	77.2
454CE-61	63	55.9	51.3	65.3	M63×1.5	15	84	90.2	99.1
454CE-63	75	67.9	62.5	78.0	M75×1.5	15	94	106.0	117.0

• Pictured : 11kV 33kV Cable - Single Core XLPE Copper Tape Screened AWA, BS6622
• IEC60502 Medium Voltage Power Cables

Prysmian BICC BICON High Voltage Cable Glands - 454CE Aluminium

• Aluminium indoor and outdoor cable gland with earth bonding connection
• Suits circular aluminium single wire armoured, plastic or rubber cables
• Outer gland seal grips sheath of cable
• For use in most climatic conditions, weatherproof and waterproof
• Three part armour lock with separate armour locking ring
• Cable gland rated to IP66



Prysmian BICON CW SWA Brass Glands 419CE are suitable for glanding 3 core medium-high voltage power cables with steel wire armour (SWA).

T&D UK are distributors for the complete range of Prysmian BICON industrial, flameproof and explosion proof cable glands including BW, CW, A2, E1W, E1FW and barrier glands.
