Prysmian BICC BICON CW63 419CE-61 High Voltage Cable Gland

High Voltage Cable Glands - CW Brass

Prysmian BICC BICON Cable Glands

High Voltage Cable Glands Terminate SWA Cables

Integral Earth High Fault Current Rating



Prysmian Bicon 419CE-61 (CW63) cable glands with 63mm entry thread enable cable termination of armoured (SWA) medium and high voltage cables with integral earth connection compliant with GDCD 190 Category A (43.3kA for 1 second).

BICON CW Brass Cable Gland Kits with Integral Earth - Prysmian 419CE-61

• CW Brass Indoor and Outdoor Cable Gland with Earth Bonding Connection
• M63 Cable Gland Entry Thread
• Suits SWA Cables with 51.3-65.3mm Cable Diameters
• High Fault Current for HV High Voltage Systems - 43.3kA for 1 second
• IP66 Rated Cable Glands - Weatherproof and Waterproof

Prysmian Bicon 419CE-61 (CW63) - Technical Specification

• Manufacturer: Prysmian
• Brand: Bicon
• Cable Gland Size: CW63
• Quantity Per Kit: 1 Cable Gland
• Cable Type: SWA Steel Wire Armoured
• Specification: Medium & High Voltage Cable Glands

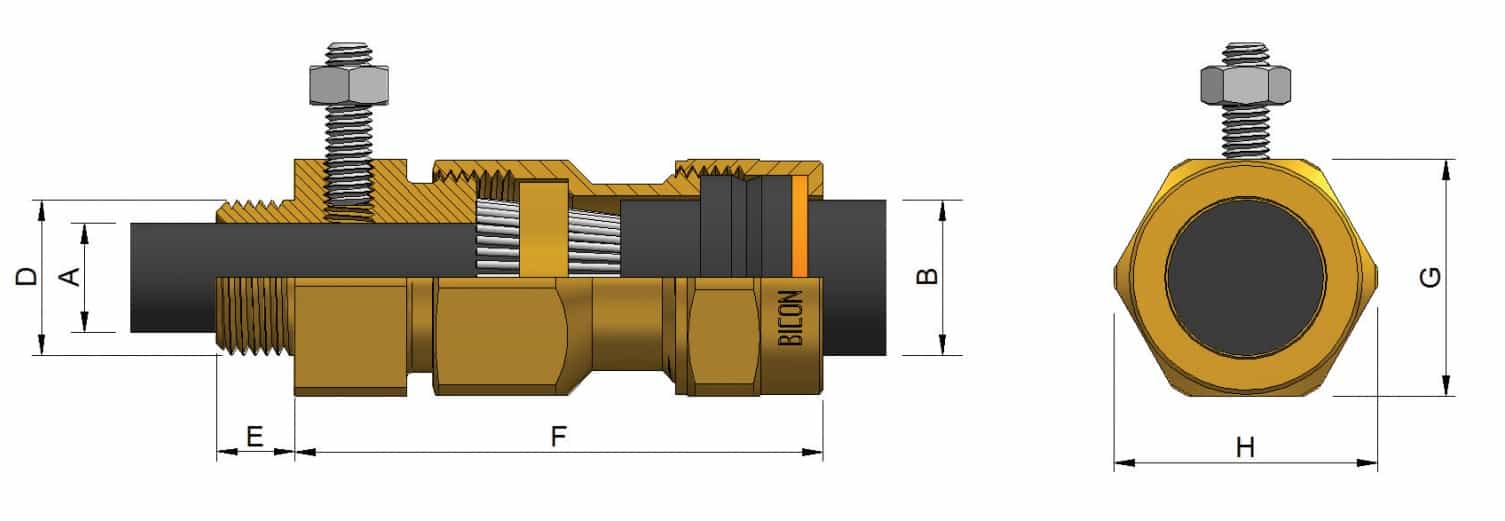

• Under Armour Cable Diameter (A): 55.9mm Maximum
• Overall Cable Diameter (B): 51.3mm Minimum
• Overall Cable Diameter (B): 65.3mm Maximum
• Armour Wire Diameter: 2.5mm
• Entry Thread (D) : M63 x 1.5
• Thread Length (E) : 15mm
• Protrusion Length (F): 94mm
• Hexagon A/F (G): 90.1mm
• Hexagon A/C (H): 100mm
• Order Code: Prysmian CW63 419CE-61
• Aluminium Version: Prysmian CW63 Cable Gland 454CE-61

T&D distribute Prysmian 11kV Cable Terminations utilising heat shrink technology to terminate high voltage power cables into switchgear, transformers and motors.


BICON Cable Glands (Brass) HV - High Voltage M63 Glands - Gland Kit 419CE-61
