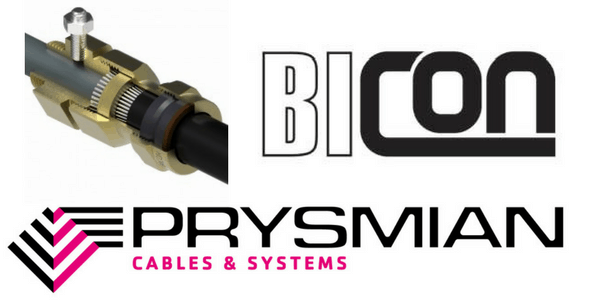

Prysmian BICC BICON CW25 419CE-55 High Voltage Cable Gland

High Voltage Cable Glands - CW Brass

Prysmian BICC BICON Cable Glands

High Voltage Cable Glands Terminate SWA Cables

Integral Earth High Fault Current Rating



Prysmian Bicon 419CE-55 (CW25) cable glands with 25mm entry thread enable cable termination of armoured (SWA) medium and high voltage cables with integral earth connection compliant with GDCD 190 Category A (43.3kA for 1 second).

BICON CW Brass Cable Gland Kits with Integral Earth - Prysmian 419CE-55

• CW Brass Indoor and Outdoor Cable Gland with Earth Bonding Connection
• M25 Cable Gland Entry Thread
• Suits SWA Cables with 17.0-27.2mm Cable Diameters
• High Fault Current for HV High Voltage Systems - 43.3kA for 1 second
• IP66 Rated Cable Glands - Weatherproof and Waterproof

Prysmian Bicon 419CE-55 (CW25) - Technical Specification

• Manufacturer: Prysmian
• Brand: Bicon
• Cable Gland Size: CW25
• Quantity Per Kit: 1 Cable Gland
• Cable Type: SWA Steel Wire Armoured
• Specification: Medium & High Voltage Cable Glands

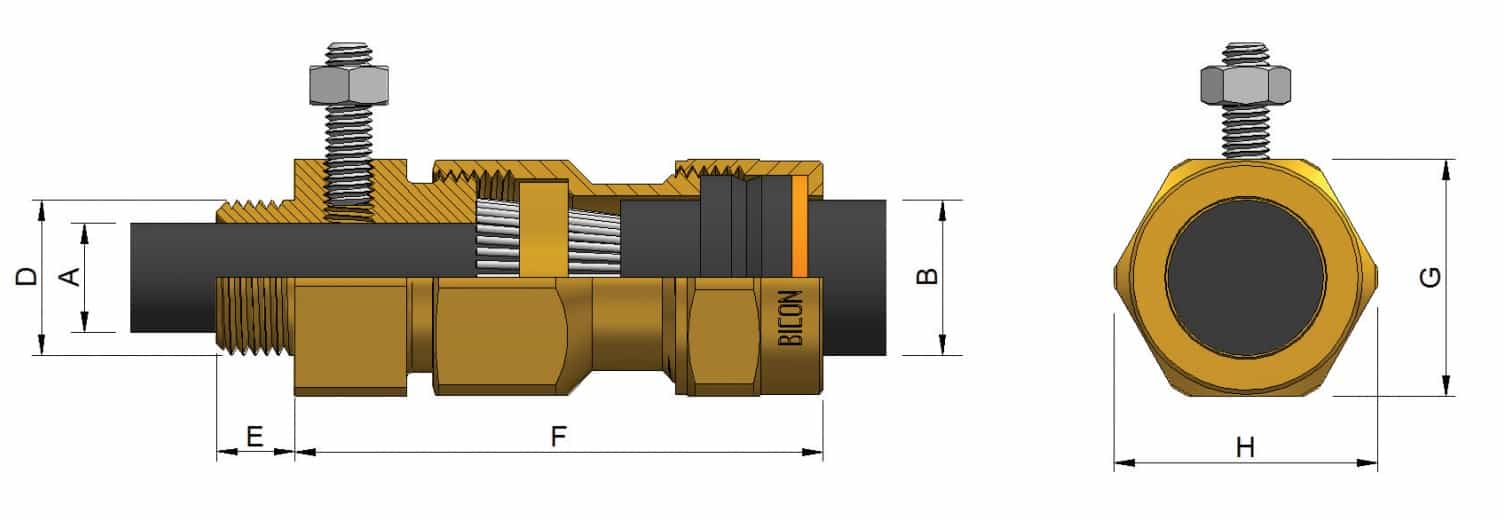

• Under Armour Cable Diameter (A): 19.9mm Maximum
• Overall Cable Diameter (B): 17.0mm Minimum
• Overall Cable Diameter (B): 27.2mm Maximum
• Armour Wire Diameter: 1.25/1.6mm
• Entry Thread (D) : M25 x 1.5
• Thread Length (E) : 10mm
• Protrusion Length (F): 63mm
• Hexagon A/F (G): 42.4mm
• Hexagon A/C (H): 48mm
• Order Code: Prysmian CW25 419CE-55
• Aluminium Version: Prysmian CW25 Cable Gland 454CE-55

T&D distribute Prysmian 11kV Cable Terminations utilising heat shrink technology to terminate high voltage power cables into switchgear, transformers and motors.


BICON Cable Glands (Brass) HV - High Voltage M25 Glands - Gland Kit 419CE-55
