Prysmian BICC BICON CW20S 419CE-52 High Voltage Cable Gland

High Voltage Cable Glands - CW Brass

Prysmian BICC BICON Cable Glands

High Voltage Cable Glands Terminate SWA Cables

Integral Earth High Fault Current Rating

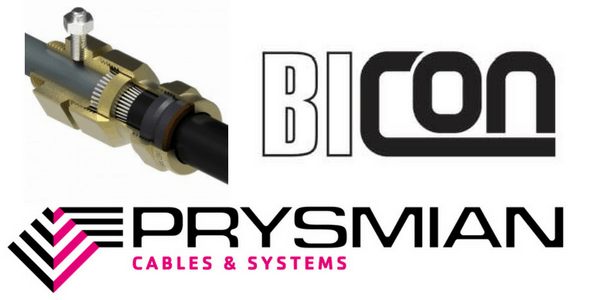

Prysmian Bicon 419CE-52 (CW20S) brass cable glands with 20mm entry thread enable cable termination of armoured (SWA) medium and high voltage cables with integral earth connection compliant with GDCD 190 Category A (43.3kA for 1 second).

BICON CW Brass Cable Gland Kits with Integral Earth - Prysmian 419CE-52

• CW Brass Indoor and Outdoor Cable Gland with Earth Bonding Connection
• M20S Cable Gland Entry Thread
• Suits SWA Cables with 8.0-15.8mm Cable Diameters
• High Fault Current for HV High Voltage Systems - 43.3kA for 1 second
• IP66 Rated Cable Glands - Weatherproof and Waterproof

Prysmian Bicon 419CE-52 (CW20S) - Technical Specification

• Manufacturer: Prysmian
• Brand: Bicon
• Cable Gland Size: CW20S
• Quantity Per Kit: 1 Cable Gland
• Cable Type: SWA Steel Wire Armoured
• Specification: Medium & High Voltage Cable Glands

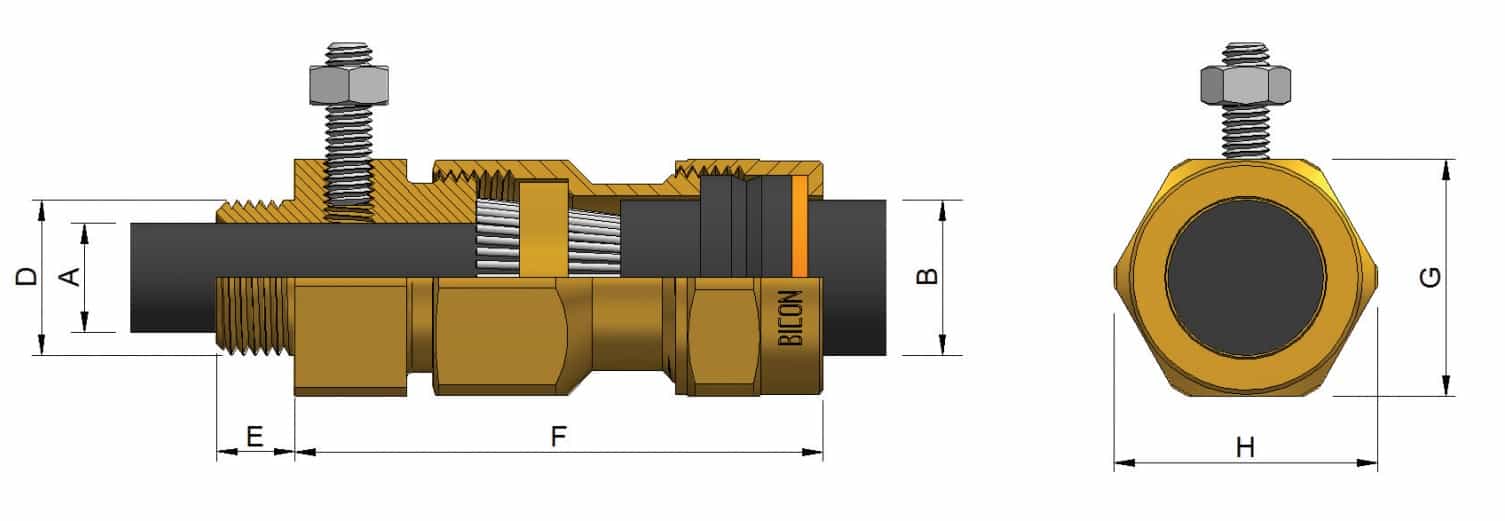

• Under Armour Cable Diameter (A): 11.6mm Maximum
• Overall Cable Diameter (B): 8.0mm Minimum
• Overall Cable Diameter (B): 15.8mm Maximum
• Armour Wire Diameter: 0.9/1.25mm
• Entry Thread (D) : M20 x 1.5
• Thread Length (E) : 10mm
• Protrusion Length (F): 56mm
• Hexagon A/F (G): 30.5mm
• Hexagon A/C (H): 34mm
• Order Code: Prysmian CW20S 419CE-52
• Aluminium Version: Prysmian CW20S Cable Gland 454CE-52

T&D distribute Prysmian 11kV Cable Terminations utilising heat shrink technology to terminate high voltage power cables into switchgear, transformers and motors.
