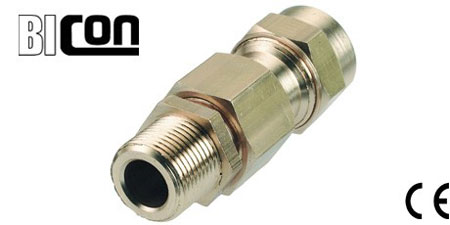

Prysmian E1W LSF brass cable glands are used to terminate XLPE and PVC insulated cables with steelLU Approved Cable Joint wire armour (SWA) in indoor and outdoor applications providing an IP66 seal on the inner and outer sheath of the cable - E1W LSF brass cable gland kits include locknuts, earth tag and zero halogen silicone shroud (LUL approved).

E1W LSF Brass Cable Glands

Prysmian E1W LSF Brass Cable Glands - 421LSF Kit List

  • E1W Gland
  • Brass Earth Tag
  • Brass Locknut
  • LSOH Shroud - Low Smoke Zero Halogen
  • 2 per kit up to and including 25mm size

See : Prysmian Cable Cleats & Cable Glands (LSF LSOH) - LU London Underground Approved



Prysmian E1W LSF Brass Cable Glands



Prysmian Bicon Reference Size Under Armour Max Ø (A) Cable Dimensions (mm) E1W Cable Gland Dimensions (mm)
Min Max Cable Diameter Ø (B) mm) Entry Thread (D) Thread Length (E) Length (F) Hexagon
Min Max A/F (G) A/C (H)
421LSF-71 20SS 6.3 8.6 8.0 13.2 M20×1.5 15 44 23.4 26.7
421LSF-52 20S 8.7 11.6 8.0 15.8 M20×1.5 15 46 25.7 29.2
421LSF-53 20 11.7 13.9 11.7 20.8 M20×1.5 15 46 30.5 34.0
421LSF-55 25 13.0 19.9 17.0 27.2 M25×1.5 15 51 37.6 42.2
421LSF-56 32 20.0 26.2 23.5 33.5 M32×1.5 15 56 47.3 53.6
421LSF-57 40 26.3 32.1 29.0 39.9 M40×1.5 15 59 56.4 61.5
421LSF-58 50S 32.2 38.1 38.0 46.2 M50×1.5 15 64 60.0 66.0
421LSF-59 50 38.2 44.0 39.5 52.6 M50×1.5 15 64 70.1 77.2
421LSF-60 63S 44.1 50.0 50.0 58.9 M63×1.5 15 67 75.0 83.0
421LSF-61 63 50.1 55.9 51.3 65.3 M63×1.5 15 67 80.0 87.4
421LSF-62 75S 56.0 61.9 62.0 71.6 M75×1.5 15 76 90.2 99.1
421LSF-63 75 62.0 67.9 62.5 78.0 M75×1.5 15 76 98.8 109.2



E1W Brass Cable Glands - Dimensions
