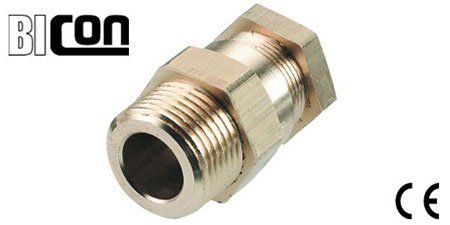

A275S Brass Bicon Cable Gland Kit (Prysmian KM409-62), 54.5-61.0mm

A2 Cable Glands

Bicon Cable Gland A275S

Prysmian KM409-62

 Industrial Brass Stuffing Cable Glands

Prysmian Bicon KM409-63 (A275S) A2 brass cable glands with 75mm entry thread enable cable termination of plastic or rubber sheathed unarmoured cables in indoor or outdoor applications  – the A275S cable glands are weatherproof and waterproof and suitable for 54.5-61.0mm cable diameters.

A275S cable gland kits are suitable for use with all unarmoured cables complying with BS EN 50262 & BS 6121-1: 1989. The A275S glands are rated to IP66 with use of suitable sealing washer and thread sealant at gland interface.

Metric & NPT Nickel Plated versions available.

BICC Bicon A275S Cable Glands : Gland Kit Prysmian KM409-62

• Manufacturer: Prysmian
• Brand: Bicon
• Cable Gland Material: Brass
• Cable Gland Size: A275S
• Quantity Per Kit: 1 Gland
• Cable Diameter (B): 54.5-61.0mm
• Entry Thread (D) : M75 x 1.5
• Thread Length (E) : 15mm
• Protrusion Length (F): 32mm
• Hexagon A/F (G): 80mm
• Hexagon A/C (H): 87.4mm
• Order Code:  KM409-63 (A275S)

• NPT Version: Prysmian Bicon 409NP-44V
• Cable Gland Size: 3″ – 75S
• Quantity Per Kit: 1 Gland
• Cable Diameter (B): 54.5-61.0mm
• Entry Thread (D) : 3″ NPT
• Thread Length (E) : 33.5mm
• Protrusion Length (F): 32mm
• Hexagon A/F (G): 98.8mm
• Hexagon A/C (H): 109.2mm

LSF A2 cable glands are available.

T&D distribute the complete range of Prysmian Cable Glands including BW, CW, A2, E1FW, E2W, barrier, hazardous area (ATEX) and high voltage cable glands - Prysmian low voltage and high voltage cable joints, cable terminations and cable cleats are also available.
