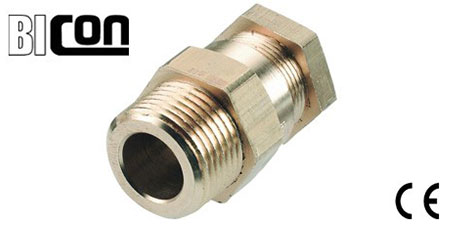

A220 Brass Bicon Cable Gland Kit (Prysmian KM409-53), 11.0-13.5mm

A2 Cable Glands

Bicon Cable Gland A220

Prysmian KM409-53

 Industrial Brass Stuffing Cable Glands

Prysmian Bicon KM409-53 (A220) A2 brass cable glands with 20mm entry thread enable cable termination of plastic or rubber sheathed unarmoured cables in indoor or outdoor applications  – the A220 cable glands are weatherproof and waterproof and suitable for 11.0-13.5mm cable diameters.

A220 cable gland kits are suitable for use with all unarmoured cables complying with BS EN 50262 & BS 6121-1: 1989. The A220 glands are rated to IP66 with use of suitable sealing washer and thread sealant at gland interface.

Metric & NPT Nickel Plated versions available.

BICC Bicon A220 Cable Glands : Gland Kit Prysmian KM409-53

• Manufacturer: Prysmian
• Brand: Bicon
• Cable Gland Material: Brass
• Cable Gland Size: A220
• Quantity Per Kit: 2 Cable Glands

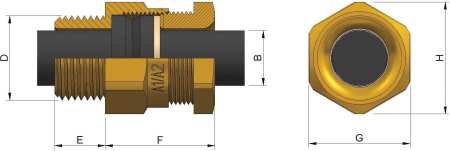

• Cable Diameter (B): 11.0-13.5mm
• Entry Thread (D) : M20 x 1.5
• Thread Length (E) : 10mm
• Protrusion Length (F): 22mm
• Hexagon A/F (G): 24mm
• Hexagon A/C (H): 27mm
• Order Code: KM409-53 (A220)

• NPT Version: Prysmian Bicon 409NP-08V
• Cable Gland Size: 3/4″ – 20
• Quantity Per Kit: 1 Gland
• Cable Diameter (B): 11.0-13.5mm
• Entry Thread (D) : 3/4″ NPT
• Thread Length (E) : 13.9mm
• Protrusion Length (F): 22mm
• Hexagon A/F (G): 30.5mm
• Hexagon A/C (H): 34.0mm

LSF A2 cable glands are available.

T&D distribute the complete range of Prysmian Cable Glands including BW, CW, A2, E1FW, E2W, barrier, hazardous area (ATEX) and high voltage cable glands - Prysmian low voltage and high voltage cable joints, cable terminations and cable cleats are also available.
