Cable Drum Trailer SEB CD20 - EEC

The smallest trailer in the SEB range of Cable Drum Trailers whilst still retaining hydraulic drum lift - the SEB CD20 cable drum trailer fully conforms to EC directives applicable for trailers for UK Highway use.

This SEB cable drum trailer is fitted with an auto reverse braking system and is suitable for transporting fibre optic and co-axial cable drums.

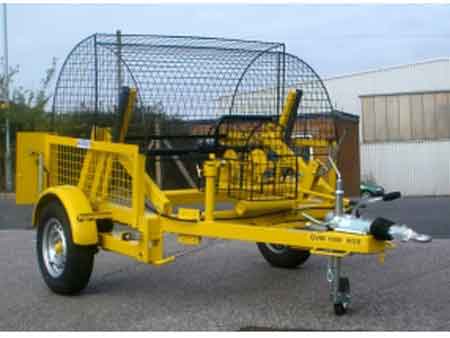

The image shows trailer manufactured with optional guards to British Telecom specification.

Pictured: SEB CD20 - EEC Cable Drum Trailer

SEB CD20 Cable Drum Trailer - Product Specifications

• Axle Type: Single Axle
• Payload (Approx): 830Kgs
• Gross Vehicle Weight: 1100Kgs
• Maximum Drum Width: 1075mm
• Drum Diameter: 1070mm Max, 570mm Min
• Spindle Diameter: 50mm
• Tow Eye/Coupling Height Unladen: 50/590
• Trailer Width: 1925mm
• Towing Speed: 100Kmh
• Tyres: 155/80R-13
• Brake System: Overrun Auto Reverse
