Ellis Patents VRQ+04 Vulcan Quadrafoil Cable Cleat

Ellis Patents Cable CleatsEllis Patents VRQ Vulcan Quadrafoil Cable Cleats (Quad)

Ellis Patents VRQ+04

Suitable for Cable Diameters 33-42mm



Ellis Patents VRQ+04 quadrafoil cable cleats are designed for four single core cables to be cleated within a single cable cleat.

VRQ+04 cleats are made from stainless steel with an LSF zero halogen liner and is suitable for 33-42mm diameter cables.

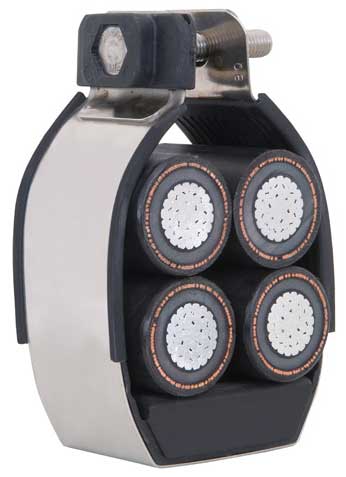

Pictured: Ellis Patents VRQ+04 Vulcan Quadrafoil Cable Cleat

Ellis Patents VRQ+04 Vulcan Quadrafoil Cable Cleat

Ellis Patents VRQ+04 Vulcan Quadrafoil Cable Cleat - Product Range
Part Number Min Diameter (mm) Max Diameter (mm) Dimensions Base Holes Weight
W (mm) H (mm) D (mm) P (mm)
VRQ+04 33 42 103 148 54 N/A 1 x M10 378g

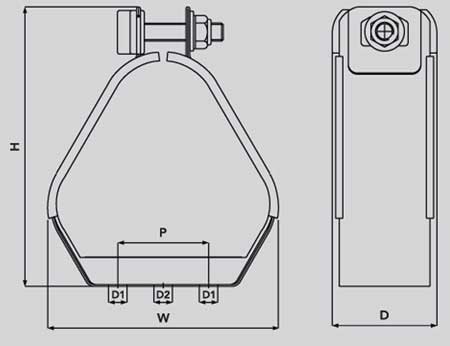

Pictured: Ellis Patents VRQ+04 Vulcan Quadrafoil Cable Cleat - Dimension Illustration

Ellis Patents VRQ+04 Vulcan Quadrafoil Cable Cleat - Dimensions Ilustrations

Adobe Ellis Patents VRQ+04 Vulcan Quadrafoil Cable Cleat - Spec Sheet
