Ellis Patents VRQ+01 Vulcan Quadrafoil Cable Cleat

Ellis Patents Cable CleatsEllis Patents VRQ Vulcan Quadrafoil Cable Cleats (Quad)

Ellis Patents VRQ+01

Suitable for Cable Diameters 23-25mm



Ellis Patents VRQ+01 quadrafoil cable cleats are designed for four single core cables to be cleated within a single cable cleat.

VRQ+01 cleats are made from stainless steel with an LSF zero halogen liner and is suitable for 23-25mm diameter cables.

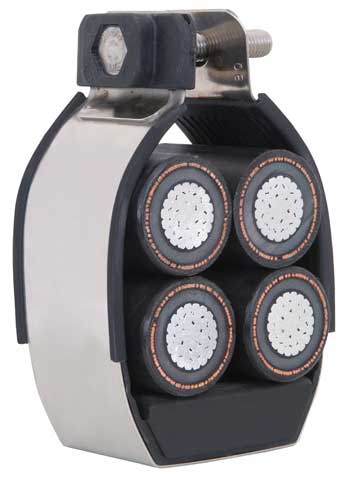

Pictured: Ellis Patents VRQ+01 Vulcan Quadrafoil Cable Cleat

Ellis Patents VRQ+01 Vulcan Quadrafoil Cable Cleat

Ellis Patents VRQ+01 Vulcan Quadrafoil Cable Cleat - Product Range
Part Number Min Diameter (mm) Max Diameter (mm) Dimensions Base Holes Weight
W (mm) H (mm) D (mm) P (mm)
VRQ+01 23 25 68 110 54 N/A 1 x M10 284g

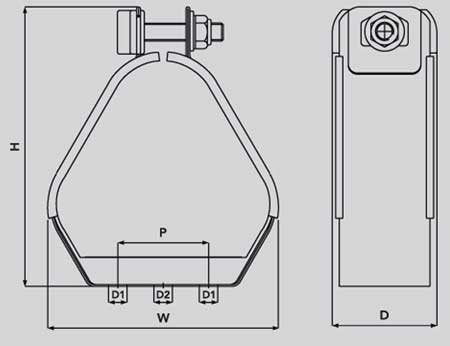

Pictured: Ellis Patents VRQ+01 Vulcan Quadrafoil Cable Cleat - Dimension Illustration

Ellis Patents VRQ+01 Vulcan Quadrafoil Cable Cleat - Dimensions Ilustrations

Adobe Ellis Patents VRQ+01 Vulcan Quadrafoil Cable Cleat - Spec Sheet
