Ellis Patents ES65-73 Emperor Single Cable Cleat

Ellis Patents Cable Cleats

Ellis Patents Emperor Cable Cleats

Ellis Patents ES65-73

Suits 65-73mm Cables in Single



Ellis Patents ES65-73 Emperor cable cleats are available for single cable applications where the highest levels of short circuit withstand are required.

ES65-73 cable cleats are manufactured from 316L stainless steel offering the ultimate protection against the harshest environmental conditions and are suitable for 65-73mm cable diameters.

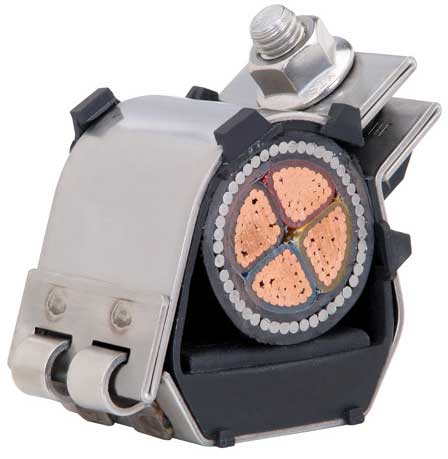

Pictured: Ellis Patents ES65-73 Emperor Single Cable Cleat

Ellis Patents ES65-73 Emperor Single Cable Cleat

Ellis Patents ES65-73 Emperor Single Cable Cleat - Technical Specification
Part Number Cable Range Dimensions Weight
Min Dia mm Max Dia mm W mm H mm D mm P mm Fixing Holes
ES65-73 65 73 111 103 54 25 2 x M10 & 1 x M12 510g

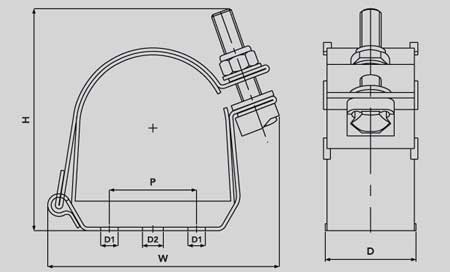

Pictured: Ellis Patents ES65-73 Emperor Single Cable Cleat - Dimensions Illustration

Ellis Patents ES65-73 Emperor Single Cable Cleat - Dimensions Illustration

Adobe Ellis Patents ES65-73 Emperor Single Cable Cleat - Installation Instructions

Adobe Ellis Patents ES65-73 Emperor Single Cable Cleat - Spec Sheet
