Ellis Patents Atlas Cable Cleats

Ellis Patents Cable Cleats

Ellis Patents Stainless Steel Cleats

Trefoil & Single Cable Cleats

Industrial, High Voltage & Hazardous Area Cable Clamping

Atlas cable cleats suit trefoil and single way cable applications where high levels of short circuit withstand are required.

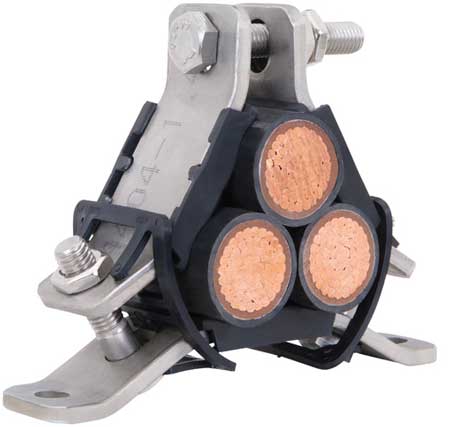

Pictured: Ellis Patents Atlas Cable Cleats - Trefoil

Ellis Patents Atlas Cable Cleats - Trefoil

As well as providing the cables with significant mechanical support, the unique patented Atlas cable cleat design provides a choice of one bolt, two bolt or framing channel fixing options.

Manufactured in stainless and galvanised steel all range taking Atlas cable cleats are supplied with a stainless steel top bolt to eliminate eddy currents.

To protect and cushion the cables during short circuit conditions the Atlas cable cleat comes with integral LSF Zero Halogen Polymeric pads.

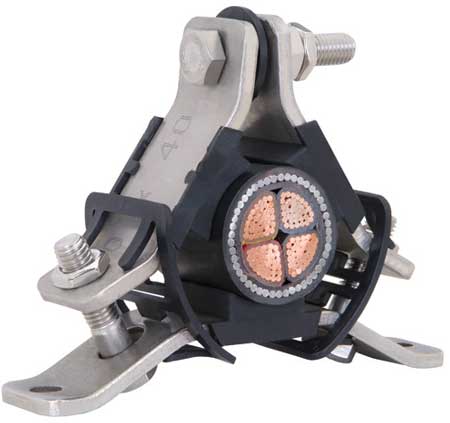

Pictured: Ellis Patents Atlas Cable Cleats - Single

Ellis Patents Atlas Cable Cleats - Single

Ellis Patents Atlas range taking cable cleats have been tested in accordance with the European Standard of "Cable Cleats for Electrical Installations"  BS EN 50368 : 2003.

Ellis Patents are the global leader in the manufacture of quality and trusted single way, trefoil, quadrafoil and range taking cable cleats.

Ellis Patents Atlas Cable Cleats - Trefoil Cable Cleats Product Range

Part Number Cable Diameter Range Weight Options
AR2-A31-* 24-26mm 930g TB, SB, FC
AR2-A32-* 26-30mm 930g TB, SB, FC
AR2-A33-* 30-35mm 970g TB, SB, FC
AR2-A34-* 35-40mm 930g TB, SB, FC
AR3-A35-* 40-45mm 1200g TB, SB, FC
AR3-A36-* 45-50mm 1200g TB, SB, FC
AR4-A37-* 50-55mm 1300g TB, SB, FC
AR4-A38-* 55-60mm 1300g TB, SB, FC
AR4-A39-* 60-66mm 1300g TB, SB, FC
AR5-A61-* 66-71mm 1800g TB, SB, FC
AR5-A62-* 71-76mm 1800g TB, SB, FC
AR5-A63-* 76-82mm 1800g TB, SB, FC
AR8-A64-* 82-92mm 2100g TB
AR8-A65-* 92-102mm 1900g TB

*Add fixing suffix: Two Bolt - TB, Single Bolt - SB, Framing Cleat - FC

Ellis Patents Atlas Cable Cleats - Single Cable Cleats Product Range

Part Number Cable Diameter Range Weight Options
AR2-A11-* 38-41mm 950g TB, SB, FC
AR2-A12-* 41-74mm 930g TB, SB, FC
AR2-A13-* 47-55mm 940g TB, SB, FC
AR2-A14-* 55-63mm 930g TB, SB, FC
AR3-A15-* 63-70mm 1200g TB, SB, FC
AR3-A16-* 70-79mm 1200g TB, SB, FC
AR4-A17-* 79-87mm 1300g TB, SB, FC
AR4-A18-* 87-95mm 1300g TB, SB, FC
AR4-A19-* 95-104mm 1300g TB, SB, FC
AR5-A51-* 104-112mm 1700g TB, SB, FC
AR5-A52-* 112-120mm 1700g TB, SB, FC
AR5-A53-* 120-130mm 1700g TB, SB, FC

*Add fixing suffix: Two Bolt - TB, Single Bolt - SB, Framing Cleat - FC

Video : Ellis Patents Atlas Cable Cleats

Adobe Ellis Patents Atlas Cable Cleats - Installation Instructions

Adobe Ellis Patents Atlas Cable Cleats - Spec Sheet
