Ellis Patents Centaur HV Cable Saddles - Design Features

Ellis Patents Centaur Cable Saddles

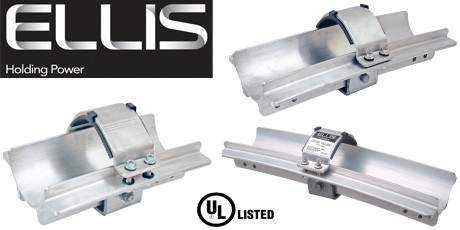

Ellis Patents Centaur high voltage cable saddles consist of an extruded and pressed aluminium saddle and a hinged aluminium overstrap. The ends of the saddle are flared so that the cable never comes in contact with a sharp edge and the overstrap incorporates an LSOH polymeric liner, which cushions the high voltage cable in the event of a short-circuit. All the fixing bolts are in 316L stainless steel. To eliminate the possibility of galvanic corrosion all dissimilar metals are isolated from each other by injection moulded separation washers. The saddles are available in lengths of 400, 600 & 800mm to allow for different cable diameters and mounting centres.

Centaur Cable Saddles for Cleating EHV Cables 132kV, 275kV, 400kV

Ellis Patents Centaur Cable Saddles for Cleating EHV Cables 132kV, 275kV, 400kV
