3M Fire Proofing & Arc Proofing Tape - Scotch 77

3M Scotch Electrical Tapes

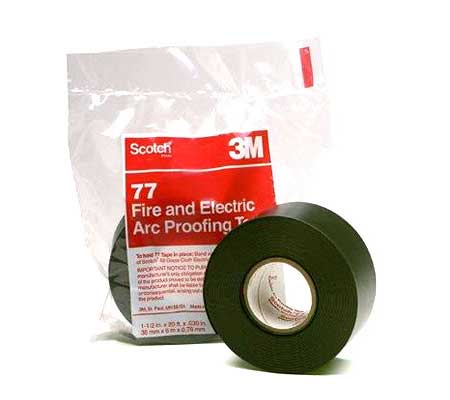

3M Scotch 77 Fire Proofing & Arc Proofing Tape



3M Scotch Electrical Tapes include Scotch 77 fire proofing and arc proofing tape which is a 0.762mm thick tape designed to protect all types of electrical cables.

3M Scotch 77 unique formulation allows the manufacture of an unsupported elastomer that expands in fire to provide a thick char build-up between the flame and cable.

This insulating firewall acts as a heat shield and flame barrier fire proofing and protecting cables, joints and electrical equipment.

3M Scotch 77 Fire Proofing & Arc Proofing Tape Description

Scotch 77 Tape is an arc and fireproofing tape designed to protect all types of LV-HV electrical cables.

The tapes unique formulation allows the manufacture of an unsupported elastomer that expands in fire to provide a thick char build-up between the flame and cable.

This insulating firewall acts as a heat shield and flame barrier, thus protecting the cables and accessories.

All adjacent wrapped cables and accessories are protected when exposed to fault arcs until limiting devices can interrupt the faulted circuit.

Scotch 77 Tape is unsupported and extremely conformable. Installers can wrap cables and irregularly shaped accessories easier and more rapidly.

This exceptional conformability enables better product control while wrapping, and more uniform coverage.

Also, the 3M Scotch 77 tape’s thin cross sections greatly reduce overall weight compared to other methods while providing equal or better fire and arc protection times.

Cable heat is also dissipated more rapidly than with other forms of thick fire protection, and, therefore, does not de-rate the cable.

One-half lap wrap of 3M Scotch 77 tape provides adequate protection for most installations. However, additional wraps can be applied if conditions warrant without requiring a reduction in conductor loads.

3M Scotch 77 Fire Proofing & Arc Proofing Tape Features

• Clean and easy to apply
• Scotch 77 Provides fault arc protection to adjacent cables
• Provides additional electrical insulation
• Resists U.V., water, salt water, acids and sewage

3M Scotch 77 Fire Proofing & Arc Proofing Tape Applications

• Fire and arc proof high energy cables
• Fire and arc proof control cables where high energy power cables are adjacent
• Fire and arc proof cables where fire hazard is present
• Fire and arc proof pipes (gas, water and oil pipelines)

Video : 3M Scotch 77 Arc Proofing Tapes.

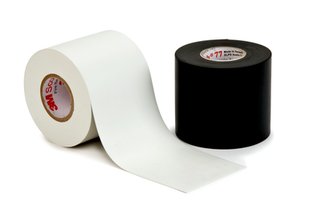

Video showing how Scotch Fire Retardant Electric Arc Proofing Tape 77 White and 77 Black can protect low and medium voltage electrical cables from electrical fault arcs and their resulting fires.

Scotch 77 Tape - Protects Your Valuable Assets

Fire Proofing & Arc Proofing Tape 38mmx6m - 3M Scotch 77

Fire Proofing & Arc Proofing Tape 76mmx6m - 3M Scotch 77

Fire Proofing & Arc Proofing Tape 25mmx30.5m - 3M Scotch 77

Fire Proofing & Arc Proofing Tape 50mmx30.5m - 3M Scotch 77

Fire Proofing & Arc Proofing Tape 101mmx30.5m - 3M Scotch 77

Fire Proofing & Arc Proofing Tape 152mmx30.5m - 3M Scotch 77
