ABB LOVOS-10 10kA Low Voltage LV Surge Arresters 1000 Volts

ABB LV Low Voltage Surge Arresters 1000 Volts

ABB LOVOS-10

ABB Surge Arresters for Low Voltage Overhead Line Protection

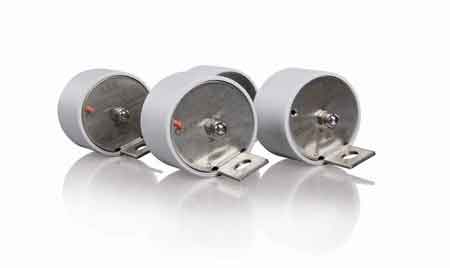

ABB LOVOS-5 surge arresters with nominal discharge current of 10kA . ABB LOVOS-10 surge arresters protect against destructive effects of lightning and switching overvoltages. The LOVOS-10 surge arrester is made of an active element - a high non-linear metal oxide varistor and a polyamide housing. ABB LOVOS can be connected to all types of overhead line conductors, including insulated types.

ABB LOVOS-5 Surge Arrester Applications

Outdoor and indoor
Altitude: up to 2000 m over sea level
Ambient temperature in place of work or storage from -40°C to +70°C



ABB Low Voltage LOVOS-10 Surge Arrester Performance Data

Surge Arrester Type	Uc (effective value)	Up at In	In / Imax	Up at Imax	Energy absorption capability	Up at long lasting surge 2000 μs
ABB LOVOS-10/280	280V	1100V	10/40kA	1700V	2200J	900V
ABB LOVOS-10/440	440V	1800V	10/40kA	2700V	3300J	1400V
ABB LOVOS-10/500	500V	2000V	10/40kA	3200V	3900J	1700V
ABB LOVOS-10/660	660V	2500V	10/40kA	3800V	4500J	1900V
ABB LOVOS-10/1000	1000V	4000V	10/40kA	5800V	7800J	3400V

LV Low Voltage Surge Arresters - ABB LOVOS-5 LOVOS-10 Surge Arresters - Installation

LV Low Voltage Surge Arresters - ABB LOVOS-5 LOVOS-10 Surge Arresters for Overhead Line Protection

LV Low Voltage Surge Arresters - ABB LOVOS-5 LOVOS-10 Surge Arresters for Transformer Protection

LV Surge Arresters ABB LOVOS 10/280 280V Uc 1100V Up - 2200J Energy Absorption Surge Arresters

LV Surge Arresters ABB LOVOS 10/440 440V Uc 1800V Up - 3300J Energy Absorption Surge Arresters

LV Surge Arresters ABB LOVOS 10/500 500V Uc 2000V Up - 3900J Energy Absorption Surge Arresters

LV Surge Arresters ABB LOVOS 10/660 660V Uc 2500V Up - 4500J Energy Absorption Surge Arresters

LV Surge Arresters ABB LOVOS 10/1000 1000V Uc 4000V Up - 7800J Energy Absorption Surge Arresters
