3M Scotchcast Branch LV Low Voltage T Cable Joints

Branch Cable Joints

"Tee" Cable Joints

3M Scotchcast 92-NBC-2 T



3M Scotchcast Branch LV Low Voltage T (Tee) Cable Joints

Scotchcast Resin Branch Joint Kits 92-NBC-2 T with Resin 40

T-Branch Joint Kit Series with 3M Scotchcast Resin 40

Branch Cable Joint Kit Application - T Type Branch Joint

3M Scotchcast resin T (tee) branch cable joint kits 92-NBC-2 are designed to be used for 1 core up to 5 core non shielded, polymeric, low voltage power cables.

The branch jointing application incorporates electrical insulation and mechanical protection of cable joints with compression or mechanical connectors.

3M low voltage branch cable joints can be used for indoor and outdoor, underground and submerged cable jointing applications.

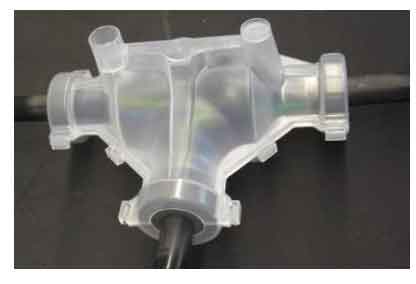

Pictured : 3M Scotchcast 92-NBC-2 T Tee Cable Joint

Pictured : 3M Scotchcast 92-NBC-2 T Tee Cable Joint (Application Range)

3M Branch Joint Kit Features

• Resin 40 in transparent two chamber bags with integrated Closed Mixing and Pouring (CMP) system
• Two part (upper and lower) mould shelves with snap fit closing system for quick and easy cable jointing
• Transparent mould body for easy control of connector distances in the joint
• Pre-cut foam sealing elements to provide reliable cable sealing to the mould body without tooling for all cable application diameters
• Closure cap to prevent any pollution during the cable joint installation

Branch Cable Joint Kit List

• Two part (upper and lower) transparent mould shelves with closure cap
• Scotchcast 40 resin bag with CMP
• Pre-cut sealing elements
• Abrasive sponge
• Detailed branch cable jointing instruction

3M Scotchcast Low Voltage LV Resin Branch Cable Joints Kits

• One part cable joint mould construction - quick simple installation
• Top seal and fixing clips - reduced chance of resin leakage from joint shell
• Range taking foam seals - no taping or sawing
• Fully integrated resin joint delivery - safer, cleaner installation of cable joints
• Complete with 3M Scotchcast premium 2 part cable joint resin
• Branch cable joints rated up to and including 1.9/3.3kV

3M Scotchcast Branch LV Low Voltage T Cable Joints

3M Scotchcast LV Cable Joints Selection Guide
