3M LVI-1 Resin Joints + STFF Fire Resistant Shield

3M Cable Joints3M STFF Cable Joints - Flame Retardant, Hydrocarbon & Chemical Resistant, Halogen Free

3M STFF Shield - Smoke, Toxicity, Flame & Fume Protection for Cable Joints

3M Scotchcast resin (470W) cable joints are designed to cable joint multi-core armoured (SWA or GSWB), polymeric (XLPE EPR) low voltage power cables - 3M cable joints provide electrical insulation and mechanical protection with either compression or mechanical connectors - 3M LVI-1 power cable joints have now replaced the 3M LA range of cable joints.

Pictured: 3M LVI-1 Resin Joints + STFF Fire Resistant Shield

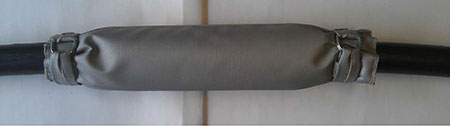

STFF Fire Resistant Shield - 3M Cable Joints

3M LVI-1 Resin Cable Joint Kits - Maximum Cable ODs (mm) - 3M STFF Shield Selection Guide

  • LVI-1/2 Resin Joint - 25mm Use 3M STFF8 Shield
  • LVI-1/3 Resin Joint - 32mm Use 3M STFF8 Shield
  • LVI-1/4 Resin Joint - 36mm Use 3M STFF9 Shield
  • LVI-1/5 Resin Joint - 45mm Use 3M STFF9 Shield
  • LVI-1/6 Resin Joint- 54mm Use 3M STFF10 Shield
  • LVI-1/7 Resin Joint - 64mm Use 3M STFF11 Shield

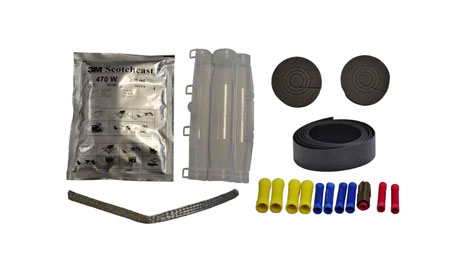

Pictured: 3M LVI-1 Resin Joints + STFF Fire Resistant Shield Kit Contents

3M LVI-1 Resin Cable Joint Kits

Video - 3M Scotchcast LVI-1 Resin Cable Joints

Adobe 3M LVI-1 Scotchcast Resin Cable Joint Kits

Adobe 3M STFF Shield - Smoke, Toxicity, Flame & Fume Protection for Cable Joints
