Zone 1 & Zone 2 Hazardous Area Plugs & Sockets

Zone 1 & Zone 2 Hazardous Area Plugs & Sockets

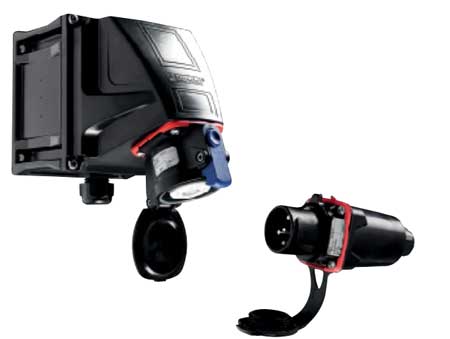

Marechal DXN ATEX Decontactors



Marechal DXN plug and socket outlets (decontactors) comply with ATEX hazardous area certification for use in explosive atmospheres including Zones 1 and Zones 2 (gas) and Zones 21 and Zones 22 (dust).

Marechal DXN ATEX certified hazardous area plugs and sockets are rated from 20-63amps, IP66/67 watertight ingress protection and with socket-outlet safety shutter providing IP4X protection.

DXN plugs and sockets comply with EN 50018 (explosion proof safety "d") EN 50019 (increased safety "e"), EN 50281-1-1 (electrical equipment for use in flammable dust atmospheres) and IEC 60309-1 (plugs and socket-outlets for industrial purposes) standards.

Marechal DXN - 20Amp, 32Amp, 63Amp Plugs & Sockets (ATEX)

Specification	Marechal DXN1	Marechal DXN3	Marechal DXN6
Rated Current (ln)	20A	32A	63A
Umax	550V	750V	750V
Auxiliary Contacts (Optional)	-	2	2
Keying Positions (To distinguish between different power supplies & applications)	24	24	24
Protection Mode	de and tb	de and tb	de and tb
ATEX Zones	Zones 1 & 2 (Gas), Zone 21 & 22 (Dusts)



YouTube Video Playlist: Marechal Plugs & Sockets Hazardous Area ATEX Plugs

Marechal DXN ATEX Plugs & Sockets For Zone 1 & Zone 2 Hazardous Areas

Zone 1, Zone 2, Zone 21, Zone 22 - Hazardous Area Plugs & Sockets
