Control Cable Joints for Hazardous Areas (Zone 1 & Zone 2)

3M LVI3-IC Zone 1 & Zone 2 Hazardous Area Cable Joints

Flame Retardant, Halogen Free & Hydro Carbon Resistant Cable Joints

3M Scotchcast LVI3-IC hazardous area control cable joints are suitable for multi-core and multi-pair XLPE, EPR, PVC, PE and lead sheathed cables with steel wire armour (SWA) or galvanised steel wire braid (GSWB), 0.6/1kV and up to 3.3kV.

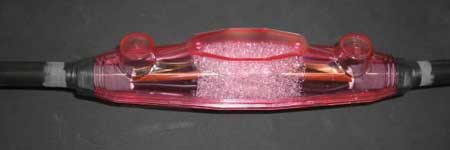

Pictured: Control & Instrumentation Cable Joints for Hazardous Areas (Zone 1 & 2) - 3M LVI3-IC

3M LVI-IC control and instrumentation cable joints are hydrocarbon resistant, chemical resistant, halogen free, flame retarded and suitable for Zone 1 and 2 installation.

3M Scotchcast hazardous area LVI-IC straight inline cable joint kits for jointing control and instrumentation cables in Zone 1 and Zone 2 are installed throughout the global oil, gas, petrochemicals, marine and offshore industries.

3M Scotchcast LVI-3-IC Hazardous Area Cable Joints Features

• 3M Scotchcast Resin 1402FR in transparent chamber bags with integrated Closed Mix to prevent exposure of resin to cable jointers
• Two part cable joint mould body with snap fit closing system for quick and easy handling
• Transparent flame retardant mould body for easy control of connector distances
• Flame retardant according to UL95 VO
• Hydro carbon and chemical resistant cable joints
• Spacer web to ensure the distance between connectors and the mould body
• Closure cap to prevent any pollution

3M Scotchcast LVI-3-IC Hazardous Area Cable Joints - Kit List

• Transparent PC cable joint mould body with closure cap to seal the joint kit
• 3M Scotchcast 1402FR resin - hydro carbon resistant
• Phase spacer web
• 3M Scotch 23 electrical insulation and self amalgamation tape
• Armour connection and continuity connection for wire braided or wire armoured cables
• Copper stocking
• Disposable cable jointers gloves according to EN394
• Cable jointers installation instruction

Control & Instrumentation Cable Joints for Hazardous Areas (Zone 1 & 2) - 3M LVI3-IC - Product Range

PE Insulated Armoured Multi-Pair Cables 0.9mm²
Part Ref	Number of Pairs
LVI-3/2-IC	1-2
LVI-3/3-IC	5
LVI-3/4-IC	10
LVI-3/5-IC	15-20
LVI-3/6-IC	30-50
PVC Insulated Armoured Multi-Core Cables 1.5-2.5mm²
Part Ref	Number of Cores
LVI-3/2-IC	2-6
LVI-3/3-IC	7-12
LVI-3/4-IC	14-21
LVI-3/5-IC	24-37

3M Scotchcast Hazardous Area Low Voltage Inline Resin Joint - Video Demo
