3M Constant Force Springs ​

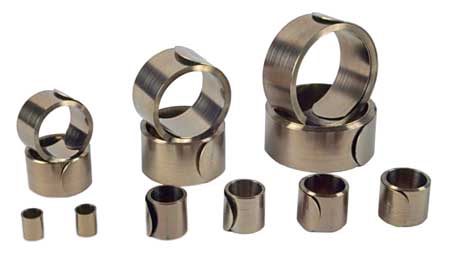

3M Constant Force Springs are a range of solderless connections for use on lead or aluminium sheaths and copper screened cables.

The 3M springs are easily applied by rolling onto the sheath connections, whereupon it continues to exert a constant pressure.

3M Scotch 23 self amalgamating tape is generally used to over tape the constant force spring once installed.

3M Constant force springs are solderless connections suitable for improving the earthing or grounding on lead and aluminium cable sheaths, cable screening tapes or wires and steel or aluminium armour wired cables.

CONSTANT FORCE SPRINGS	INNER DIAMETER OF SPRING	SPRING WIDTH	SPRING TAPE LENGTH (Mm)	MIN DIA	MAX DIA
3M P59	3.5	9	80	4	10
3M P60	7.5	10	175	9	15
3M P61	11	16	225	14	22
3M P62	14.5	16	295	18.5	29
3M P63	18.5	16	375	23.5	37
3M P64	25	16	505	31	50
3M P65	32	20	710	44	70
3M P66	44	20	935	58	94
3M P67	57	20	1250	70	110

Video : 3M Constant Force Springs (Installation - Using 3M P64)

3M Electrical Products General Catalogue

3M P59 Constant Force Spring 4-10mm

3M P60 Constant Force Spring 9-15mm

3M P61 Constant Force Spring 14-22mm

3M P62 Constant Force Spring 18.5-29mm

3M P63 Constant Force Spring 23.5-37mm

3M P64 Constant Force Spring 31-50mm

3M P65 Constant Force Spring 44-70mm

3M P66 Constant Force Spring 58-94mm

3M P67 Constant Force Spring 70-110mm
