3M Cold Shrink Cable Jointing Kits - Low Voltage Joint Kits

3M Cold Shrink Cable Joints & Cable Terminations

3M Cold Shrink Cable Jointing Kits

Suit XLPE Armoured, EPR Braided, Unarmoured Cables

3M LC Cable Joints

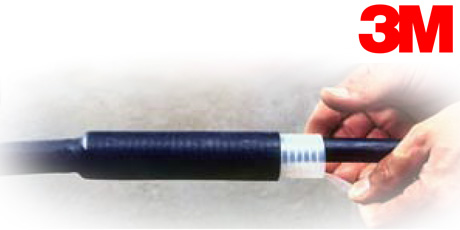

3M Cold Shrink Cable Joint - 3M LC Joint Kits







3M LV Cold Shrink Cable Jointing Kits suitable for cable typesXLPE/PVC/EPR Insulation, Lead Sheath, Steel Wire Armour (SWA), Galvanised Steel Wire Braided (GSWB) and Phosphur Bronze Wire Braided (PBWB) Cables rated 0.6/1kV up to 1.9/3.3kV.

Cold shrink cable jointing kits are suitable for jointing cables indoor, outdoor, overhead or installed in cable trays - this includes both onshore and offshore cable jointing applications.

3M LV Cold Shrink Cable Jointing Kits - Benefits:

  • Simple installation – no special jointing tools required
  • No torches or heat required with Cold Shrink joint kits, no "hot-working"
  • Safe installation - replaces conventional resin jointing method
  • Accommodates a wide range of cable sizes
  • Improved tough rubber formulation withstands rough backfilling
  • Resistant to acids, alkalis, ozone, UV light, and fungus
  • Waterproof seal for submerged and outdoor exposed applications
  • Smooth profile cable joint with space and weight savings


3M Cold Shrink cable jointing kits offer faster, safer and simpler installations without the dangers and hassles of “hot-working” - no naked flames, no gas torches, no ignition tooling, no “hot-work” permit applications.


Selection Table - 3M Cold Shrink Cable Joints LC Type

Nominal
Conductor
Area (mm²)

2
Core
LV Cable Joint

3
Core
LV Cable Joint

4
Core
LV Cable Joint

3
Core
3.3kv Cable Joint

1.5 sqmm

LC1 LC1 LC1 N/A

2.5 sqmm

LC1 LC1 LC1 N/A

4 sqmm

LC1 LC1 LC2 N/A

6 sqmm

LC2 LC2 LC2 N/A

10 sqmm

LC2 LC2 LC3 N/A

16 sqmm

LC3 LC3 LC3 LC4

25 sqmm

LC3 LC3 LC3 LC4

35 sqmm

LC3 LC3 LC4 LC4

50 sqmm

LC3 LC4 LC4 LC4

70 sqmm

LC4 LC4 LC5 LC5

95 sqmm

LC4 LC5 LC5 LC5

120 sqmm

LC4 LC5 LC5 LC5

150 sqmm

LC5 LC5 LC6 LC5

185 sqmm

LC5 LC6 LC6 LC6

240 sqmm

LC6 LC6 N/A LC6

300 sqmm

LC6 N/A N/A N/A



3M Cold Shrink Low Voltage Cable Jointing Kits - Accepted Cable Dias

  • LCI Joint Kit 16.2mm-33.1mm3M
  • LC2 Joint Kit 16.2mm-33.1mm
  • LC3 Joint Kit 16.2mm-33.1mm
  • LC4 Joint Kit 24.9mm-56.4mm
  • LC5 Joint Kit 37.8mm-84.3mm
  • LC6 Joint Kit 37.8mm-84.3mm

XLPE Insulated Power Cables (Cross Linked Polyethylene) BS5467 IEC60502XLPE Cold Shrink Cable Joints

  • Polymeric insulated cables for use in power networks : direct burial underground (cable trench), outdoor and indoor applications and for use in cable ducting.
  • Armour : single core AWA (aluminium wire armour)  or multi core SWA (steel wire armour).
  • PVC cable sheath.
  • Stranded plain copper conductors 600/1000 volts.
  • Core identification 1 Core: Brown ; 2 Cores: Brown, Blue ; 3 Cores: Brown, Black, Grey ; 4 Cores: Blue, Brown, Black, Grey ; 5 Cores: Green/Yellow, Blue, Brown, Black, Grey.
Video : 3M Cold Shrink Cable Cable Joints (LC)
