Filoform MDIV Cable Duct Sealing System Description

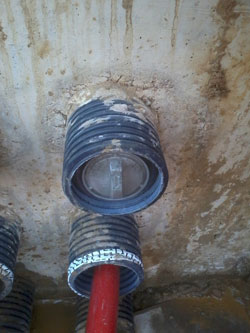

Filoform MDIV cable duct sealing system is a quick and easy sealing of empty ducts or boreholes where cables or pipes are to be installed at a later date. The Filoform MDIV system provides an effective Gas and Watertight seal of underground cable penetrations. Filoform MDIV is specified and used by major Electrical, Gas, & Water Utililty companies in the UK and Benelux countries.

Filoform MDIV will protect valuables from damage which is caused by gas and water leaks. The Filoform MDIV sealing system is suitable for ducts with a diameter of 75mm up to 160mm.

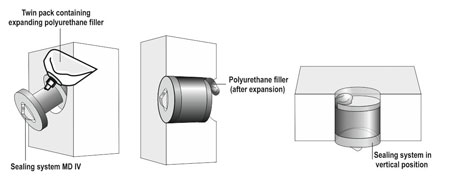

Filoform MDIV sealing systems are based on a specially formulated two-component expanding polyurethane resin. The polyurethane sealant is packed in a transparent plastic bag with a screw ring where the two components are separated by a clamping profile. After removal of the clamping profile, the two components are simply mixed together for 30 seconds. The Filoform MDIV package is now ready for use and can be easily opened with the use of the screw nipple.

After pouring the Filoform MDIV resin in the duct, the resin starts expanding by forming CO². During the expansion the Filoform polyurethane filling material penetrates all areas inside the duct and sealing all openings regardless of the shape of the duct or borehole, then the hardening process starts. The Filoform MDIV two component filler provides not only a 100% gas and watertight seal but also offers excellent mechanical strength.

Filoform MDIV duct sealing system seals all know materials, PVC & PE sheathed cables, PILC, (HD) PE pipes

Filoform MD4 Cable Duct Sealing System Polyutherane



Filoform MDIV Cable Duct Sealing System Features

  • Gas- and Water tight
  • Can be made Fire resistant by using MD+
  • Resistant to Hydrogen Sulphide / Methane & other gases
  • Complies with ATEX regulations
  • WIMES Compliant
  • Suitable for ducts or bore holes
  • Quick and easy installation
  • A complete kit for one duct
  • Excellent mechanical strength
  • Suitable for renovations
  • Can be installed retrospectively



Filoform MDIV Cable Duct Sealing System Contents

  •  Twin pack containing expanding polyurethane filler equipped with screw-ring
  •  Coil shaped unit
  •  Screw type nipple
  •  Set protective gloves
  •  Sandpaper
  •  Installation instructions



Filoform MDIV Cable Duct Sealing System Specifications

  • Start time expansion: > 95 seconds
  • End time expansion minutes: 15 seconds
  • Compressive strength: > 100 N/cm²
  • Gas and water tightness:  1,0bar 30 days no leakage
  • Density 10m water column: 30 days no leakage
  • Volume consistency: cube 10 x 10cm no change
  • Temperature Cycles, -20°C tot +40°C: 10 consecutive cycles no leakage
  • Vibration test 10 Hz/amplitude 3mm: 240 hours no leakage
  • Axial tensile force: diameter x 10 N no leakage
  • Resistance to bending: cables 45° in 2 directions >250mm no leakage
  • Expansion polyurethane foam in pipe: < 40cm
  • Mould Resistance: Good
  • Rodent Resistance: Good
  • Shelf Life: 18 months min



Filoform MDIV Cable & Pipe Duct Sealing Systems

YouTube Playlist : Filoform Duct Seals - Cable Duct Sealing Systems (Filoseal+ MDII MDIII MDIV)

Filoform MDIV Cable & Pipe Duct Sealing System Data

Adobe

Filoform MDIV-1 Cable Duct Sealing System Kit 280301 Suits Up 75mm - 95mm Duct Diameter

Adobe

Filoform MDIV-3 Cable Duct Sealing System Kit 280321 Suits Up 95mm - 125mm Duct Diameter

Adobe

Filoform MDIV-4 Cable Duct Sealing System Kit 280331P Suits Up 125mm - 160mm Duct Diameter
