Filoform MDII Cable Duct Sealing System Description

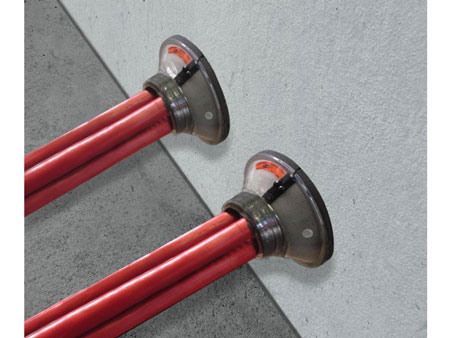

Filoform MDII duct sealing systems provide an effective gas and watertight seal of underground cable penetrations. The Filoform MDII cable duct seal will protect valuables from damage which is caused by gas and water leaks and also offers excellent mechanical strength.

Filoform MDII cable duct seals are based on a specially formulated two-component expanding polyurethane resin. Filoform MDII polyurethane sealant is packed in a transparent plastic bag with a screw ring where the two components are separated by a clamping profile. After the removal of the Filoform clamping profile, the two components are simply mixed together for 30 seconds.

Filoform MDII Cable & Pipe Two Component Duct Sealing System

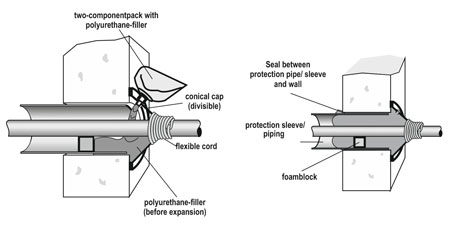

The Filoform MDII package is now ready for use and can be easily opened with the use of the screw nipple. After pouring the Filoform MDII resin in the cable duct, the resin starts expanding by forming CO2. During the expansion the polyurethane filling material penetrates all areas inside the duct, thus sealing all openings regardless of the shape of the duct or borehole. After this the hardening process starts.

Filoform MDII sealing sytem will not only seal the space between the cable or pipe but also the space between the duct and the wall in one operation. Filoform MDII system is suitable in situations where more than one cable or pipe is in the duct and the opening of the duct does not need to be completely round.

The Filoform MDII system seals most cable duct and bore-hole types : PVC & PE sheeted cables, PILC cables, (HD)PE pipes, PE drinking water conduits.

The design of the Filoform MDII divisible conical cap makes it possible to install the system in existing situations. The installation of the conical MDII cap can be done by trimming the cap to the diameter of the cable or pipe.

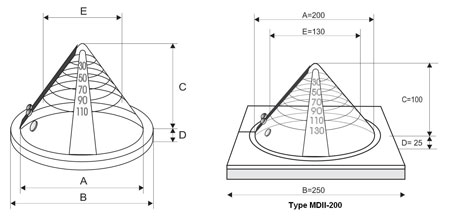

Filoform MDII Cable Duct Sealing System Dimensions



Filoform

MDII-50

Cable Duct Sealing System

Filoform

MDII-110

Cable Duct Sealing System

Filoform

MDII-125

Cable Duct Sealing System

Filoform

MDII-160

Cable Duct Sealing System

Filoform

MDII-200

Cable Duct Sealing System

A 80mm 130mm 150mm 200mm 200mm
B 100mm 150mm 170mm 220mm 250mm
C 80mm 75mm 70mm 90mm 160mm
D 16mm 15mm 15mm 15mm 25mm
E 40mm 70mm 90mm 130mm 160mm



Filoform MDII Cable Duct Sealing System Features

  • Gas and watertight cable duct seals
  • Can be used in any shaped or sized duct up to 200mm
  • Easy and quick installation
  • One complete kit for sealing of one duct
  • High mechanical strength
  • Resists ground movement, shocks and vibrations
  • Suitable for renovation works



Filoform MDII Cable Duct Sealing Systems Contents

  • Conical cap with sealing cap
  • Foam support block
  • Self-adhesive foam strip
  • Flexible cord
  • Expanding polyurethane filler
  • Screw nipple
  • Set protective gloves
  • Sandpaper
  • Installation instructions



Filoform MDII Cable Duct Sealing System Specifications

  • Start time expansion: > 95 seconds
  • End time expansion minutes: 15 seconds
  • Compressive strength: > 100 N/cm²
  • Gas and water tightness:  1,0bar 30 days no leakage
  • Density 10m water column: 30 days no leakage
  • Volume consistency: cube 10 x 10cm no change
  • Temperature cycles, -20°C tot +40°C: 10 consecutive cycles no leakage
  • Vibration test 10 Hz/amplitude 3mm: 240 hours no leakage
  • Axial tensile force: diameter x 10 N no leakage
  • Resistance to bending: cables 45° in 2 directions >250mm no leakage
  • Expansion polyurethane foam in pipe: < 40cm
  • Mould resistance: Good
  • Rodent resistance: Good
  • Shelf life: 18 months min



Filiform MDII Cable & Pipe Duct Sealing System



YouTube Playlist : Filoform Duct Seals - Cable Duct Sealing Systems (Filoseal+ MDII MDIII MDIV)

Filoform MDII Cable & Pipe Duct Sealing System Data

Adobe

Filoform MDII-50 Cable Duct Sealing System Kit 280271 Suits Up To 50mm Duct & 40mm Cable

Adobe

Filoform MDII-110 Cable Duct Sealing System Kit 280261 Suits Up To 110mm Duct & 70mm Cable

Adobe

Filoform MDII-125 Cable Duct Sealing System Kit 280251 Suits Up To 125mm Duct & 90mm Cable

Adobe

Filoform MDII-160 Cable Duct Sealing System Kit 280241 Suits Up To 160mm Duct & 130mm Cable

Adobe

Filoform MDII-200 Cable Duct Sealing System Kit 280246 Suits Up To 200mm Duct & 160mm Cable
