Nexans Euromold M440TB/G Tee Connectors 36kV 630Amps 185-630sqmm

Nexans Euromold M440TB/G Tee Connectors 36kV 630Amps 185-630sqmm

Nexans Euromold 440TB Connectors

Tee Connector

36kV 630 Amps

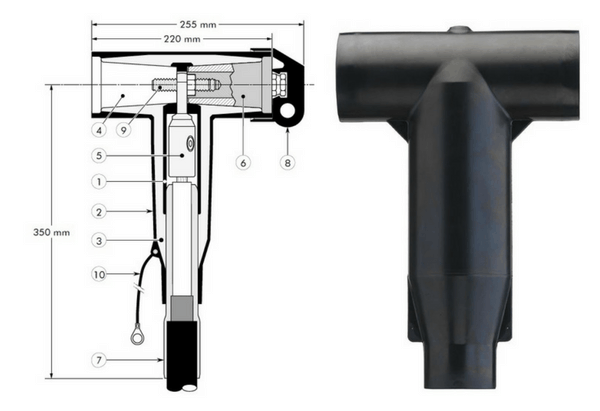

Nexans Euromold M440TB/G Tee Connectors - DesignNexans Euromold

  • Conductive EPDM insert
  • Conductive EPDM jacket
  • Insulating EPDM layer moulded between insert and jacket
  • Type C 630A Bushing Interface as CENELEC EN50180 & EN50181
  • Conductor connector
  • Basic insulating plug (with VD point)
  • Cable reducer
  • Conductive rubber cap
  • Clamping screw
  • Earthing lead

Nexans Euromold separable cable connectors connect, joint and terminate medium and high voltage (MV-HV) power cables to electrical equipment including switchgear, transformers and motors up to 33kV.

Nexans Euromold M440TB/G Tee Connector 36kV 630Amps Interface C

Nexans Euromold M440TB/G Connectors

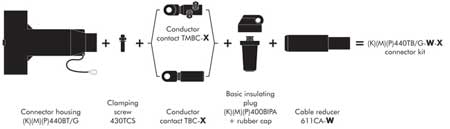

Nexans Euromold M440TB/G Tee Connectors 36kV 630Amps 185-630sqmm - Kit Contents

Nexans Euromold M440TBG Tee Connectors 36kV 630Amps 185-630sqmm - Kit Contents

Adobe

Nexans Euromold M440TB-G Tee Connectors 36kV 630Amps 185-630sqmm - Catalogue
