Nexans Euromold K152SR Straight Connectors 24kV 250Amps 25-95sqmm

Nexans Euromold 152SR Connectors

Straight Connector

24kV 250 Amps

• Product Category: Separable Connectors
• Termination Type: Straight Connector
• Bushing Interface Type: Interface A Connector
• Location: Switchgear | Transformer | Motor
• Voltage: MV HV Medium & High Voltage
• Voltage Um Class: 22kV 24kV
• Suit Cable Type: Polymeric
• Number Of Cable Cores: Single Core or 3 Core
• Cable Conductor Sizes: 25-95sqmm
• Current Rating Connector: 250 Amps

Nexans Euromold K152SR Straight Connector 24kV 250Amps Interface A

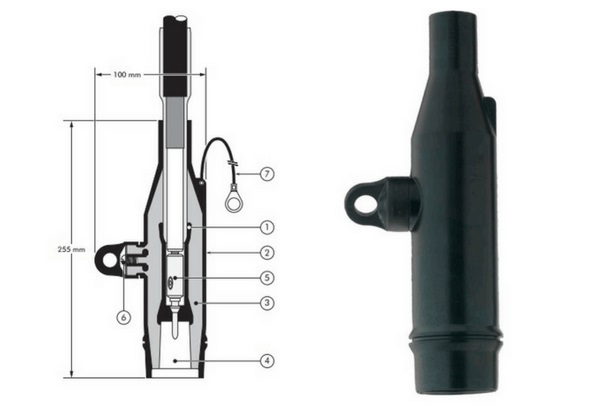

Nexans Euromold K152SR Straight Connectors - Design

1. Conductive EPDM insert
2. Conductive EPDM jacket
3. Insulating EPDM layer moulded between insert and jacket
4. Type A 250A Bushing Interface as CENELEC EN50180 & EN50181
5. Conductor connector
6. Voltage test point
7. Earthing lead (G version only)

Nexans Euromold separable cable connectors connect, joint and terminate medium and high voltage (MV-HV) power cables to electrical equipment including switchgear, transformers and motors up to 33kV.
